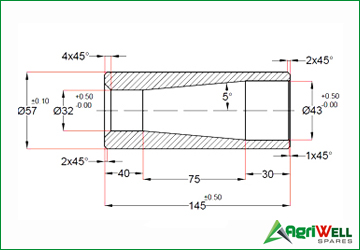

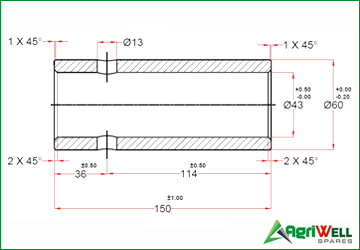

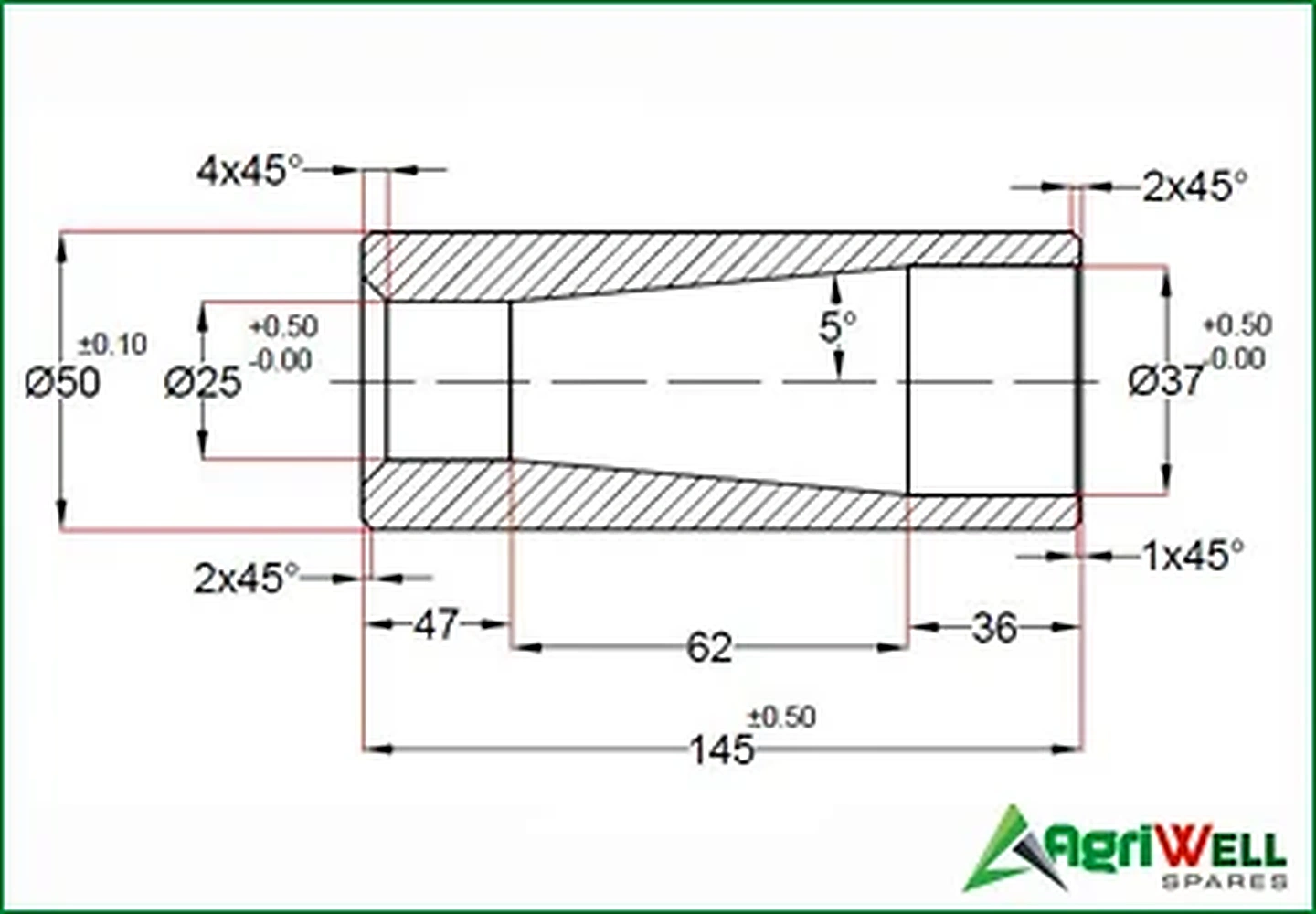

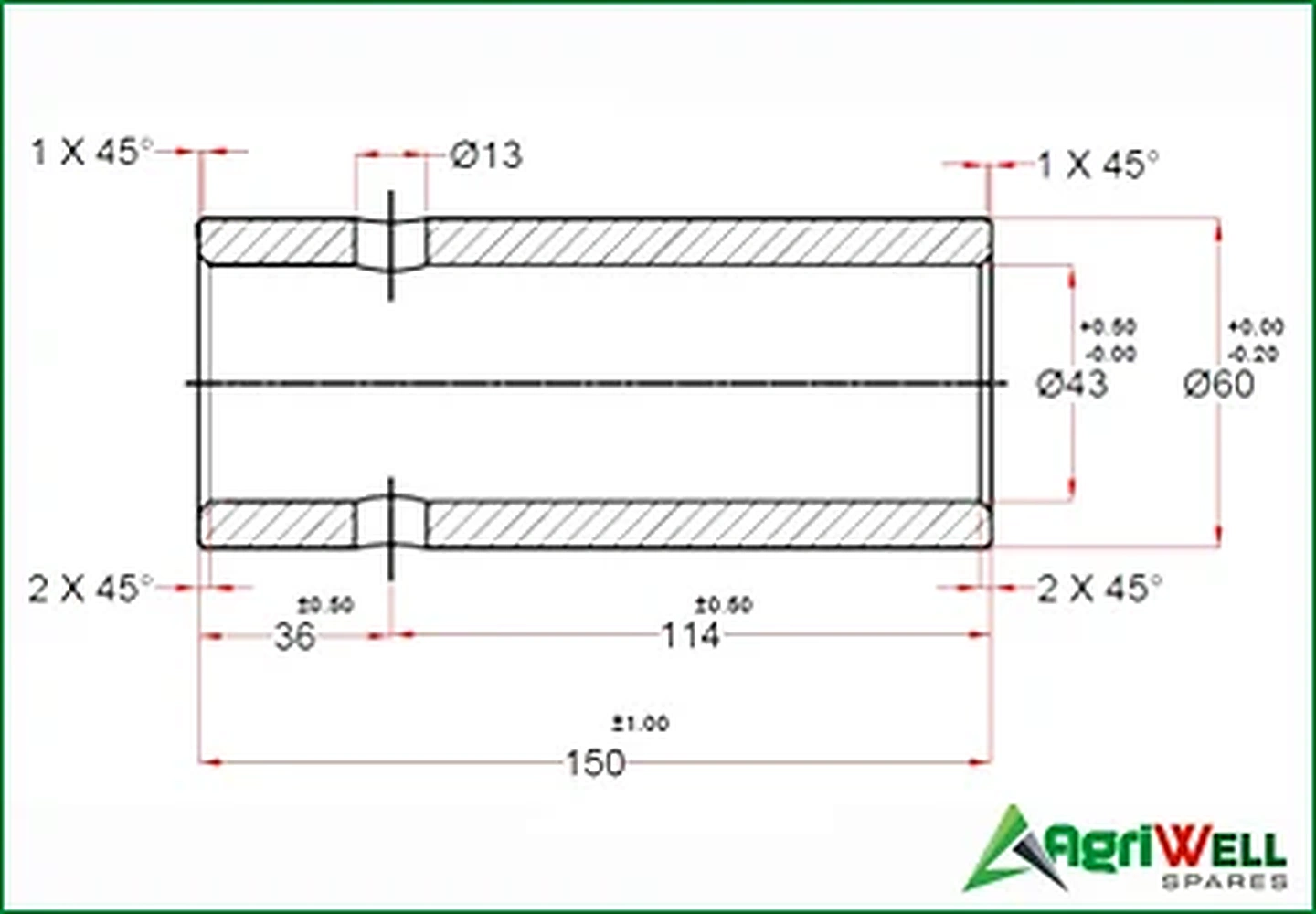

Tines Bushing

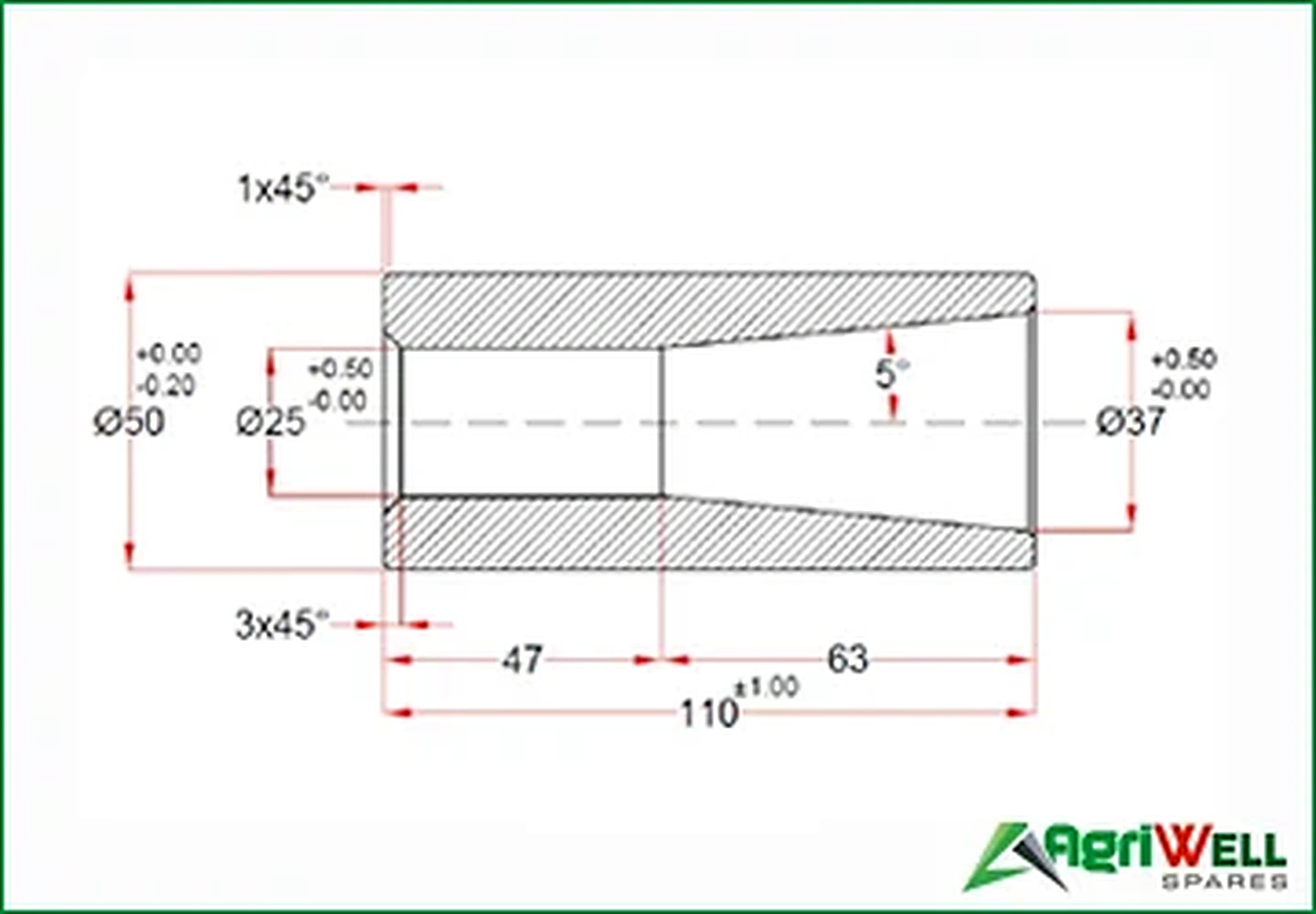

AWS50110C1
Conus 1 Bush For 36mm Bale Spear

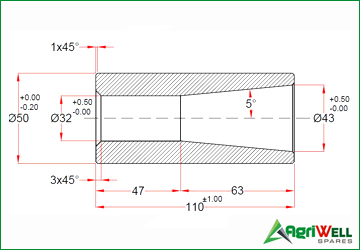

AWS50145C1
Conus 1 Bush For 36mm Bale Spear
AWS50110C2

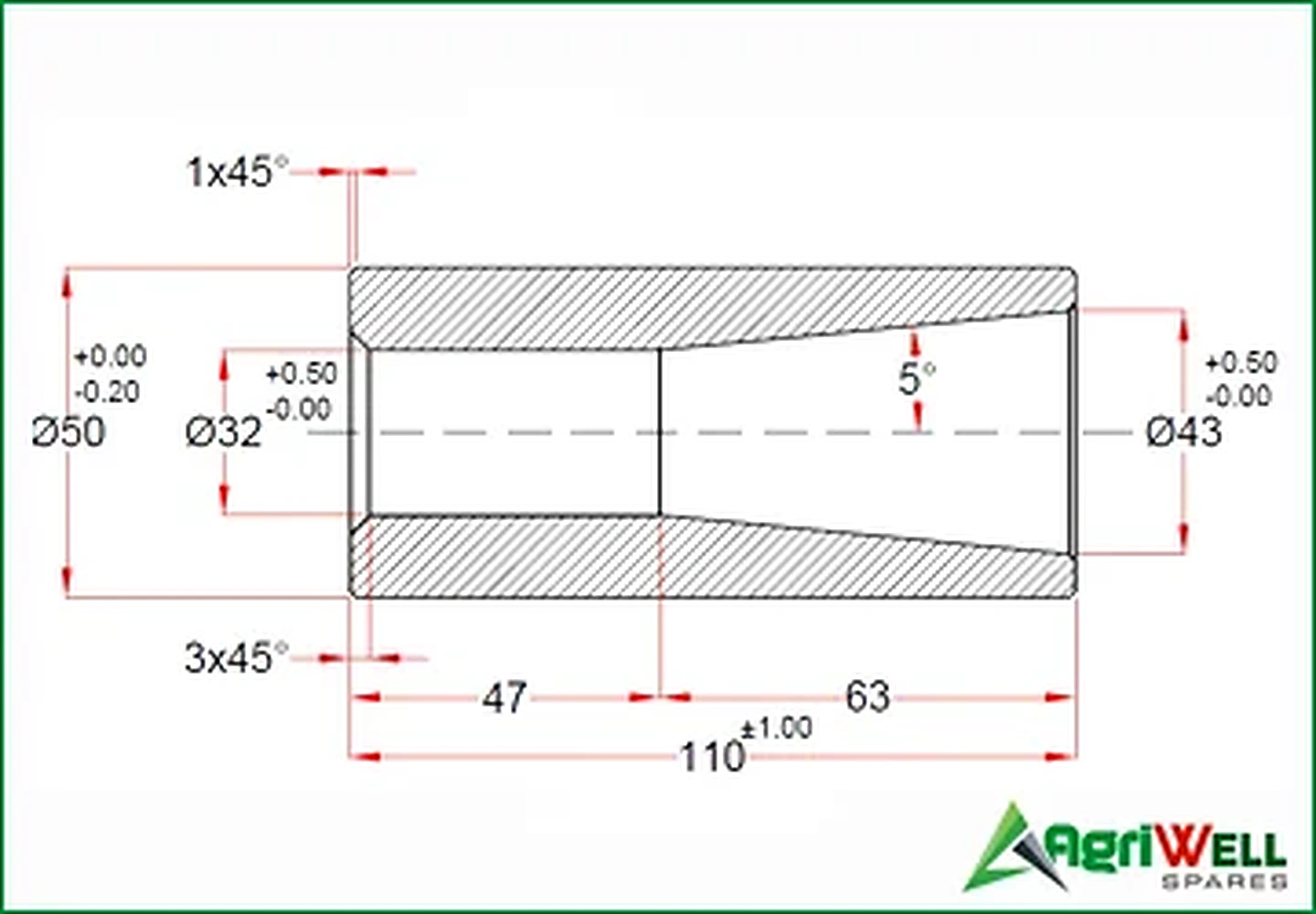

Conus 2 Bush For 42mm Bale Spear

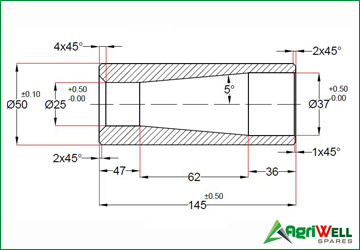

AWS57145C2
Conus 2 Bush For 42mm Bale Spear

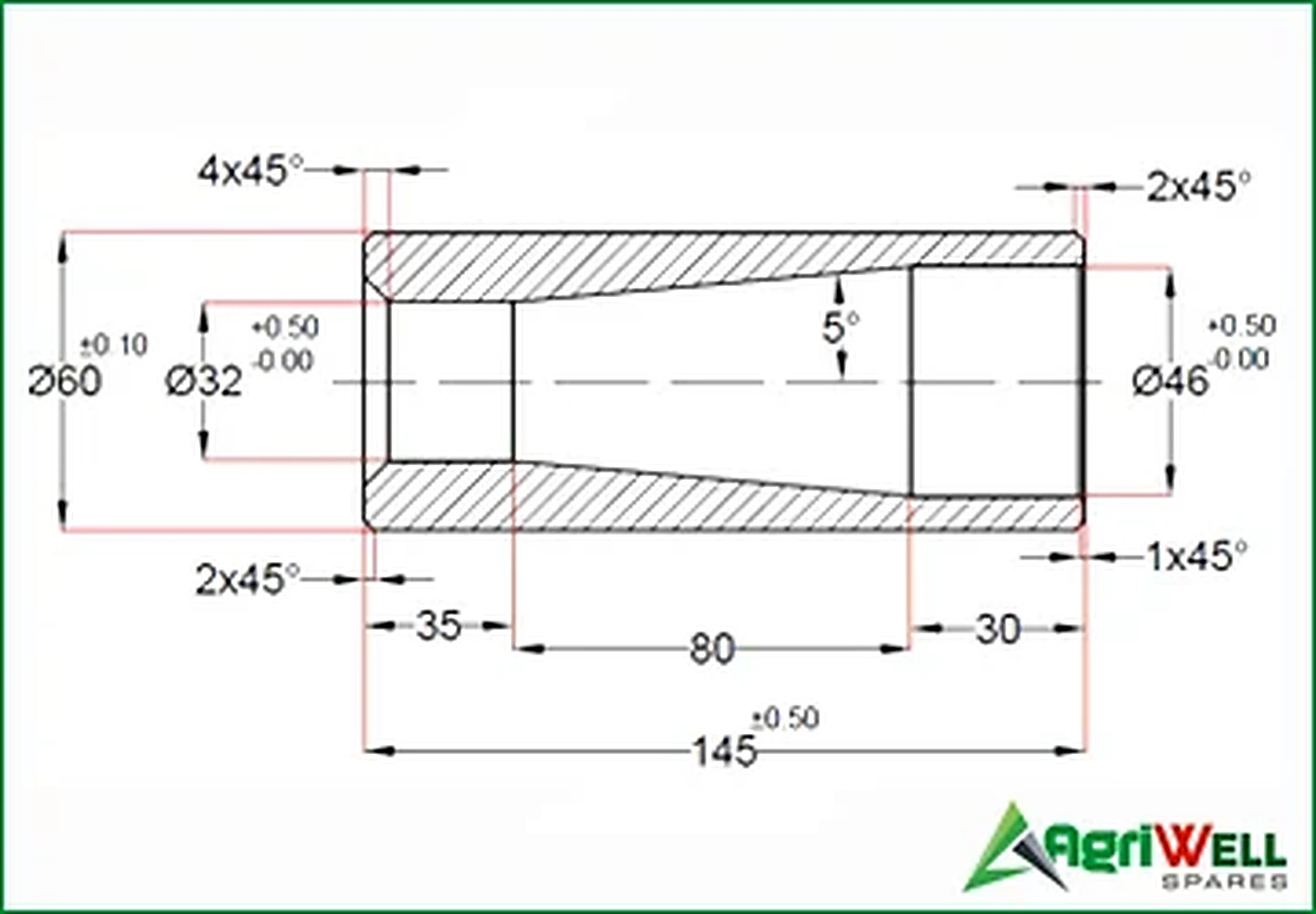

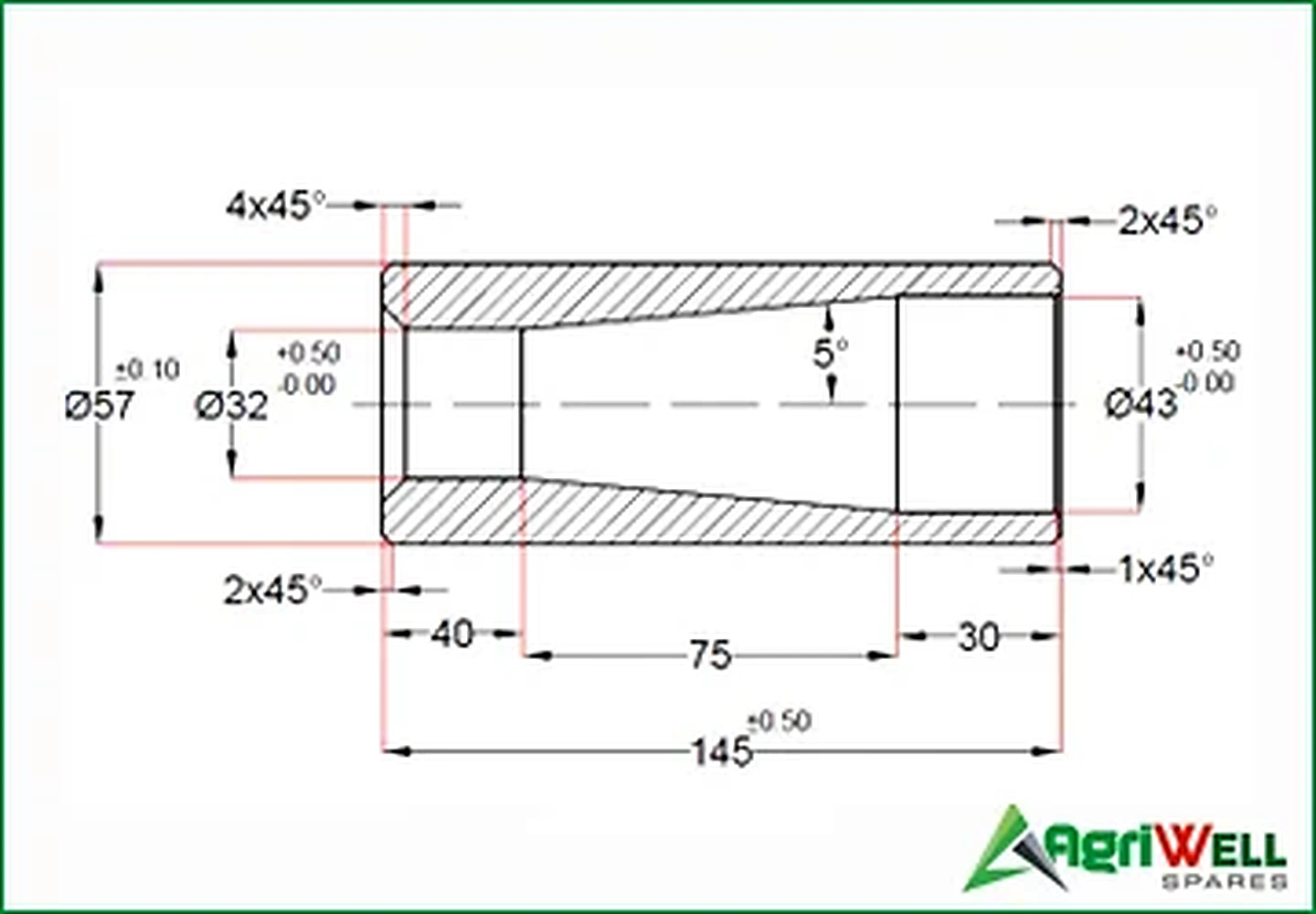

AWS60145C2
Conus 2 Bush For 45mm Bale Spear

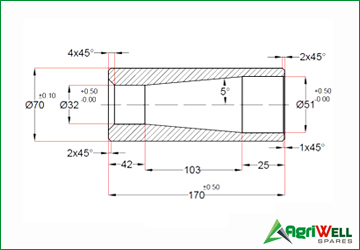

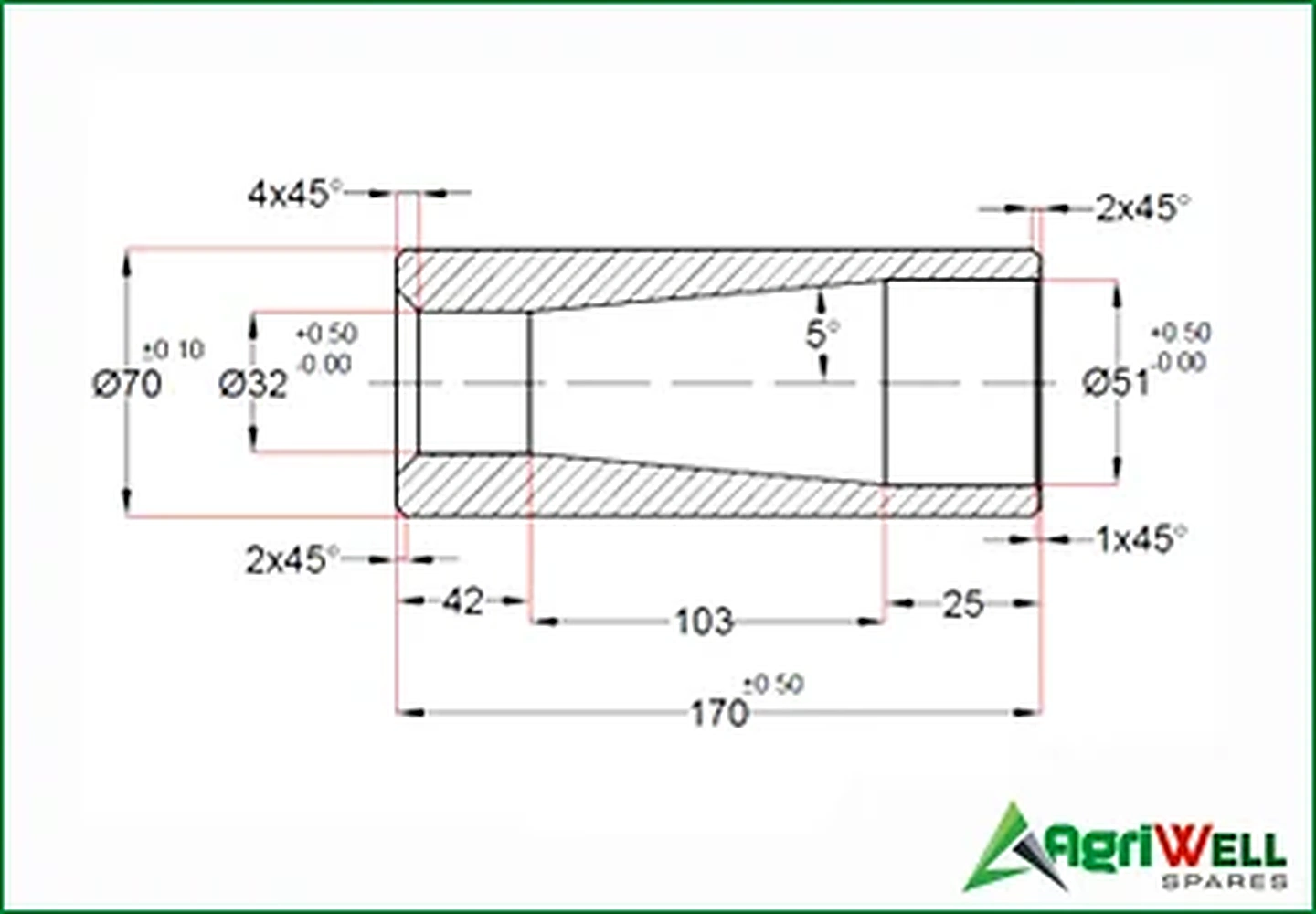

AWS70170C2
Conus 2 Bush For 50mm Heavy Duty Bale Spear

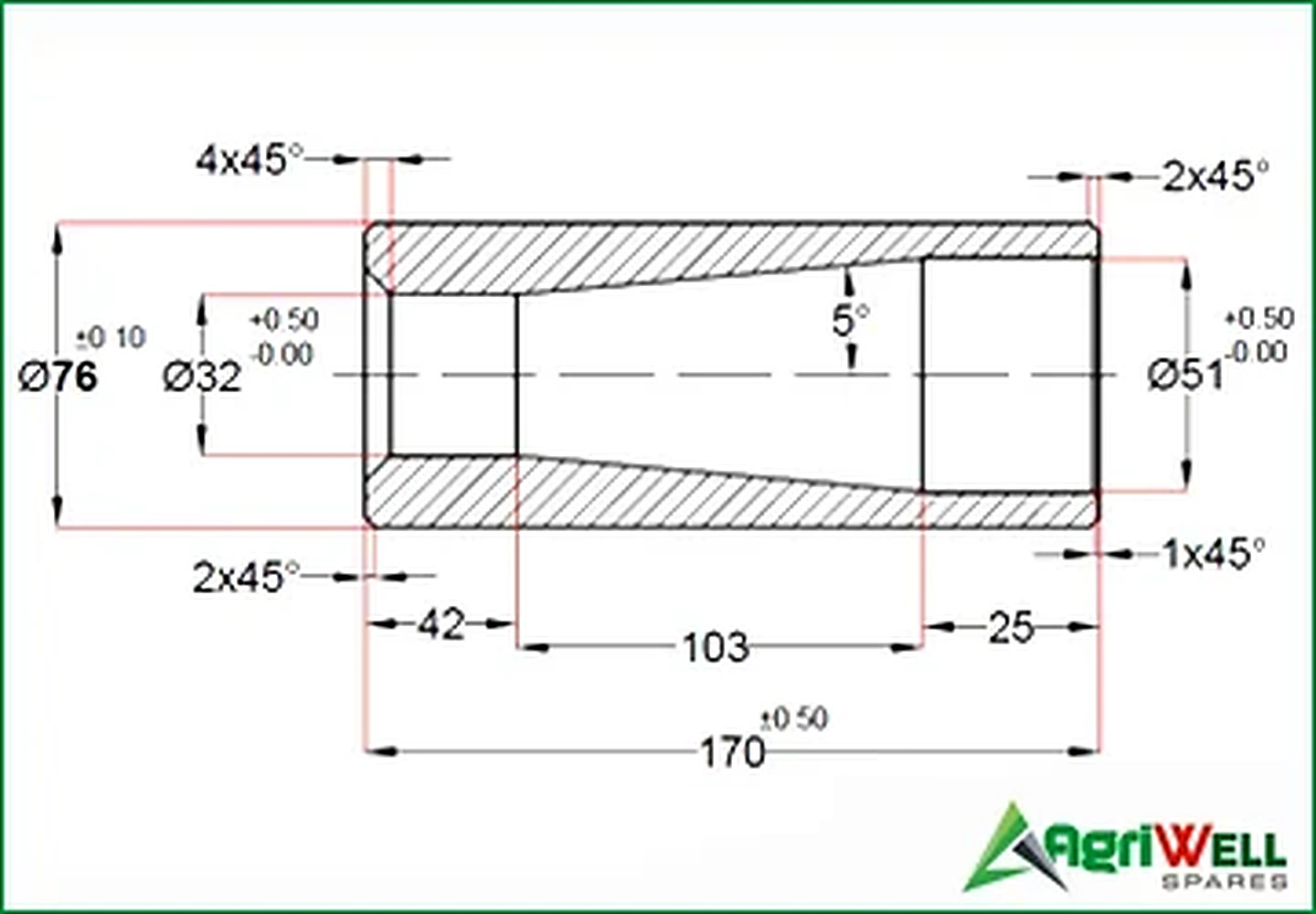

AWS76170C2
Conus 2 Bush For 50mm Extra Heavy Duty Bale Spear

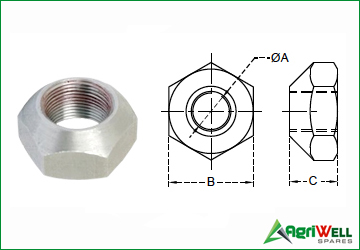

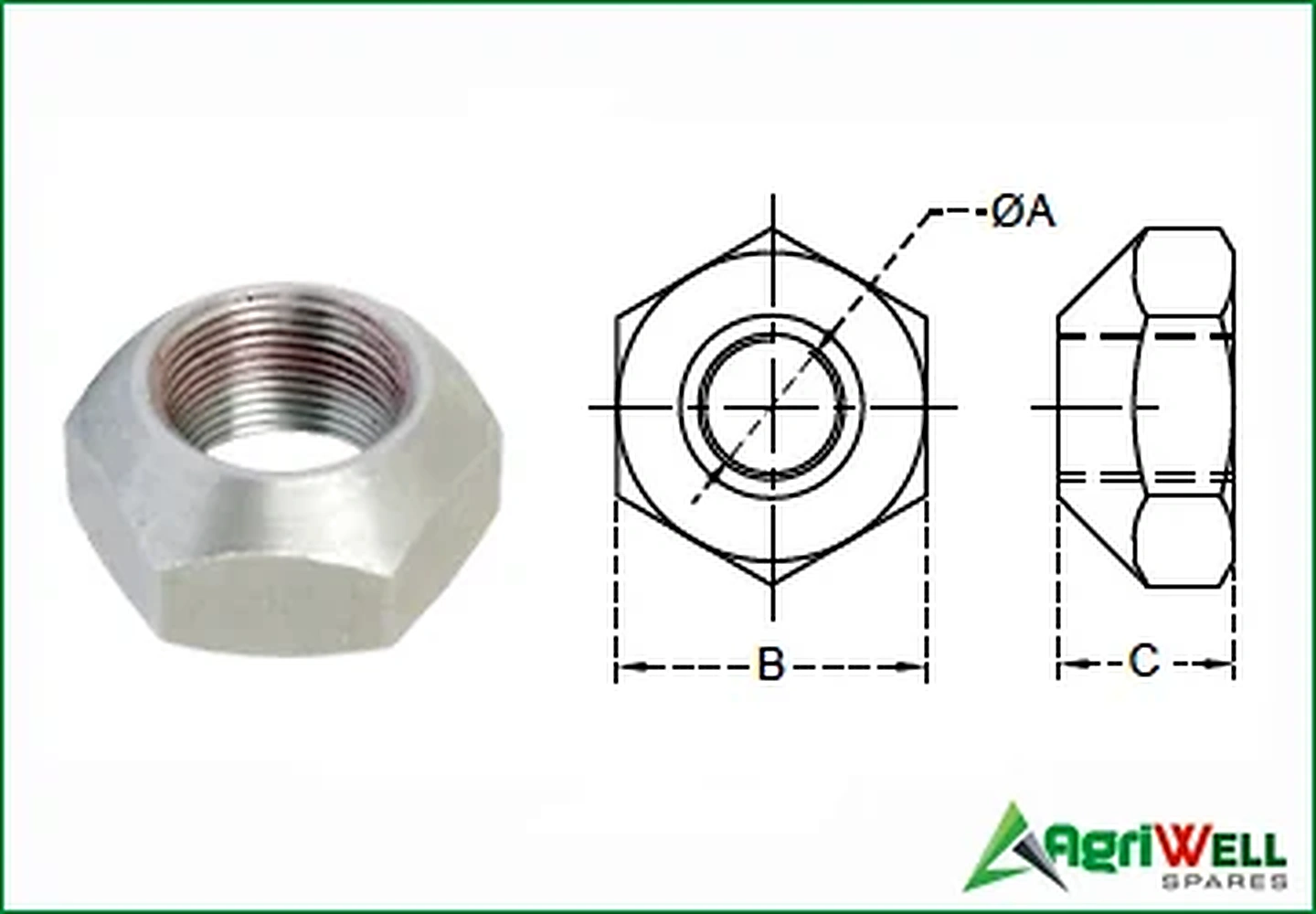

Tines Nuts
Oil Dipped (Rust Preventive)
Part Number |
Thread ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Ref. Number |
TNN-20153018 |
20X1.5 |
30 |
18 |
07989 |
TNN-22153218 |
22X1.5 |
32 |
18 |
07988 |
TNN-28154225 |
28X1.5 |
42 |
25 |
07986 |
TNN-30204225 |
30X2.0 |
42 |
25 |
07986 |

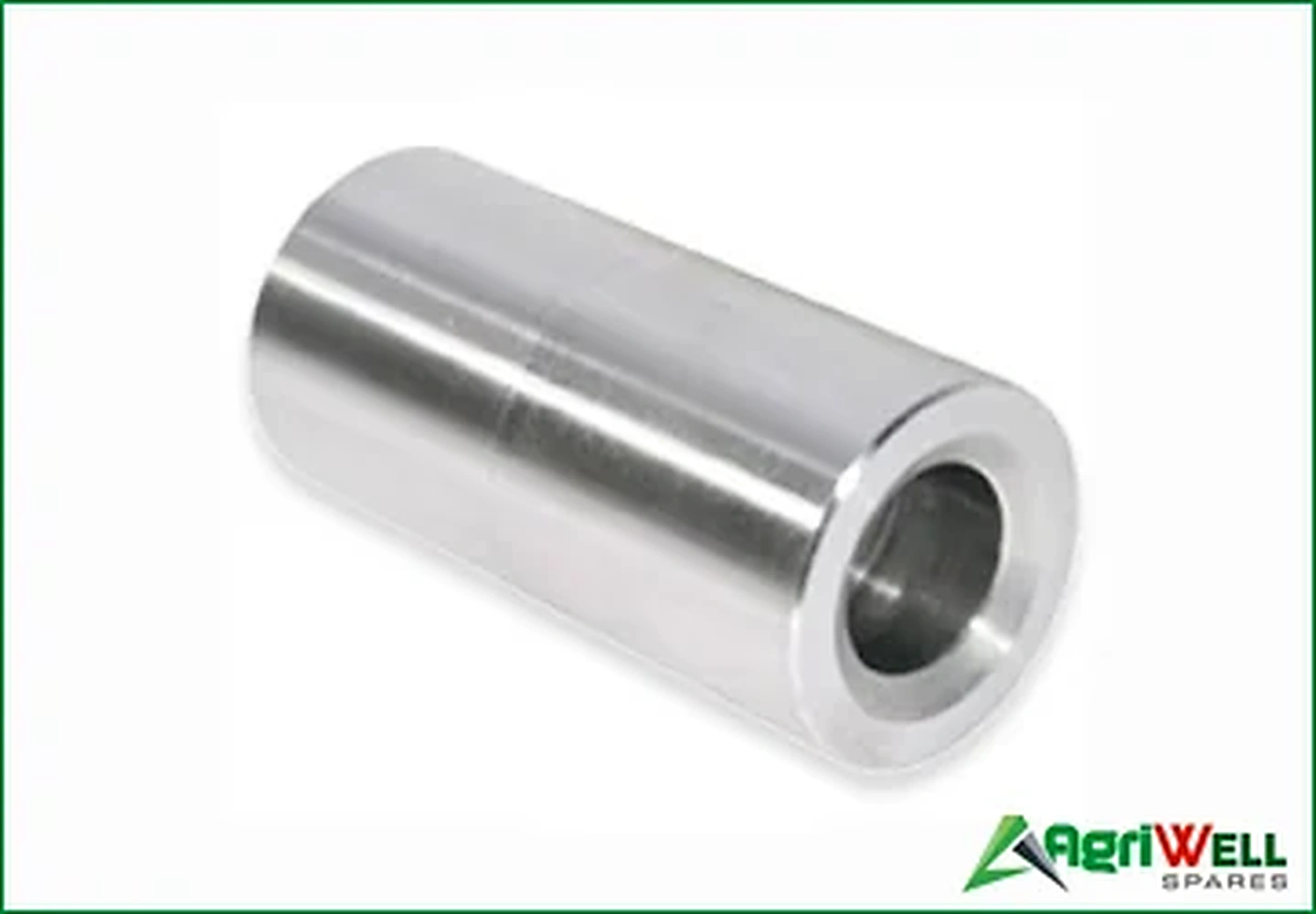

Tines Bushing

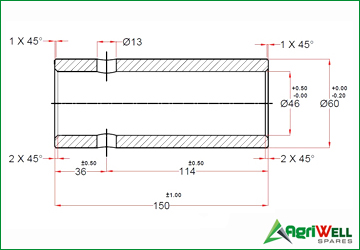

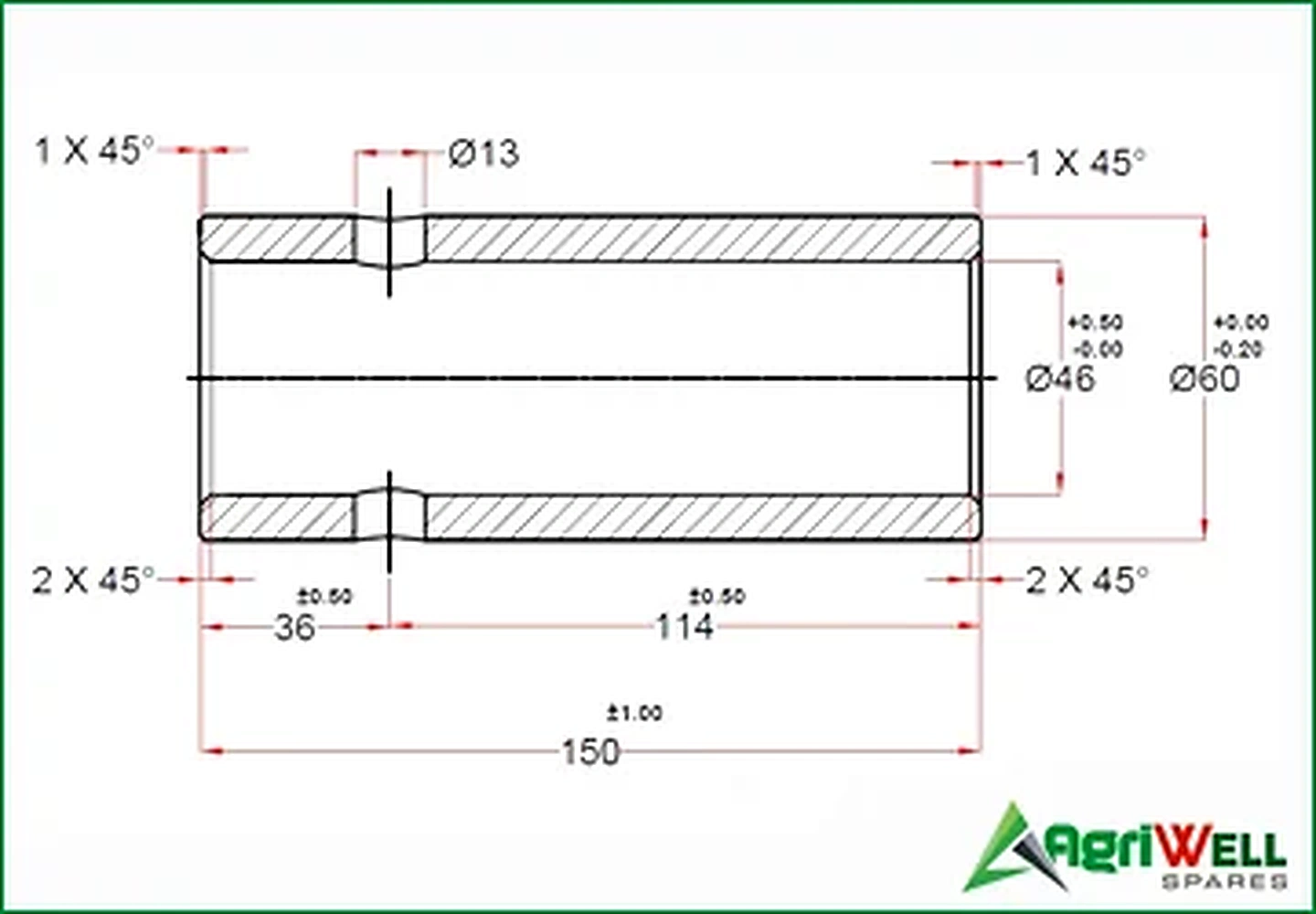

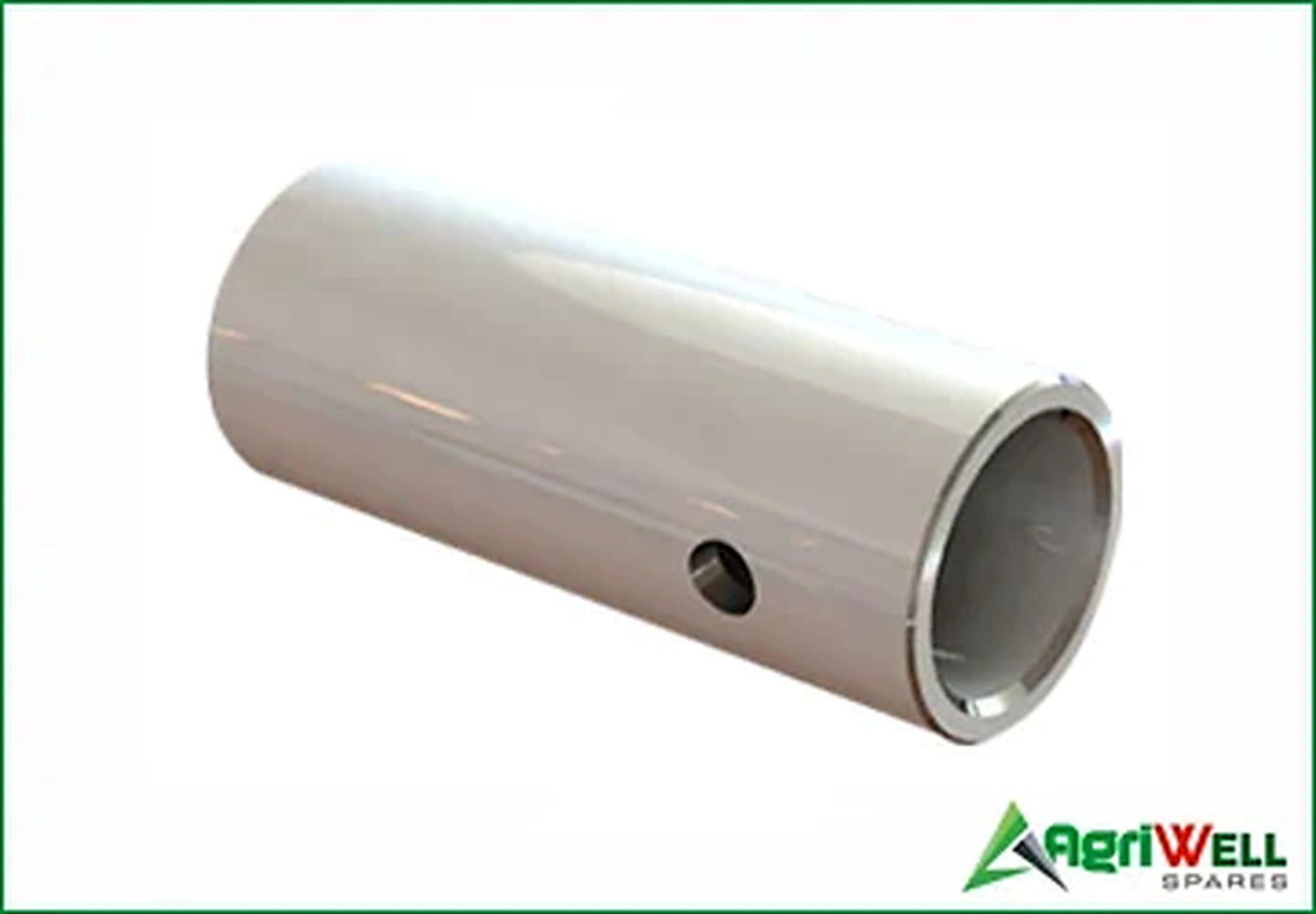

AWS60150BS45
Bolt On Bush For 45mm Square Tapered Bale Spear
AWS60150BS42
Bolt On Bush For 42mm Ribbed Bale Spear

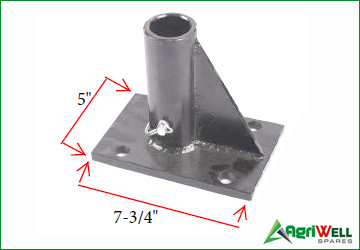

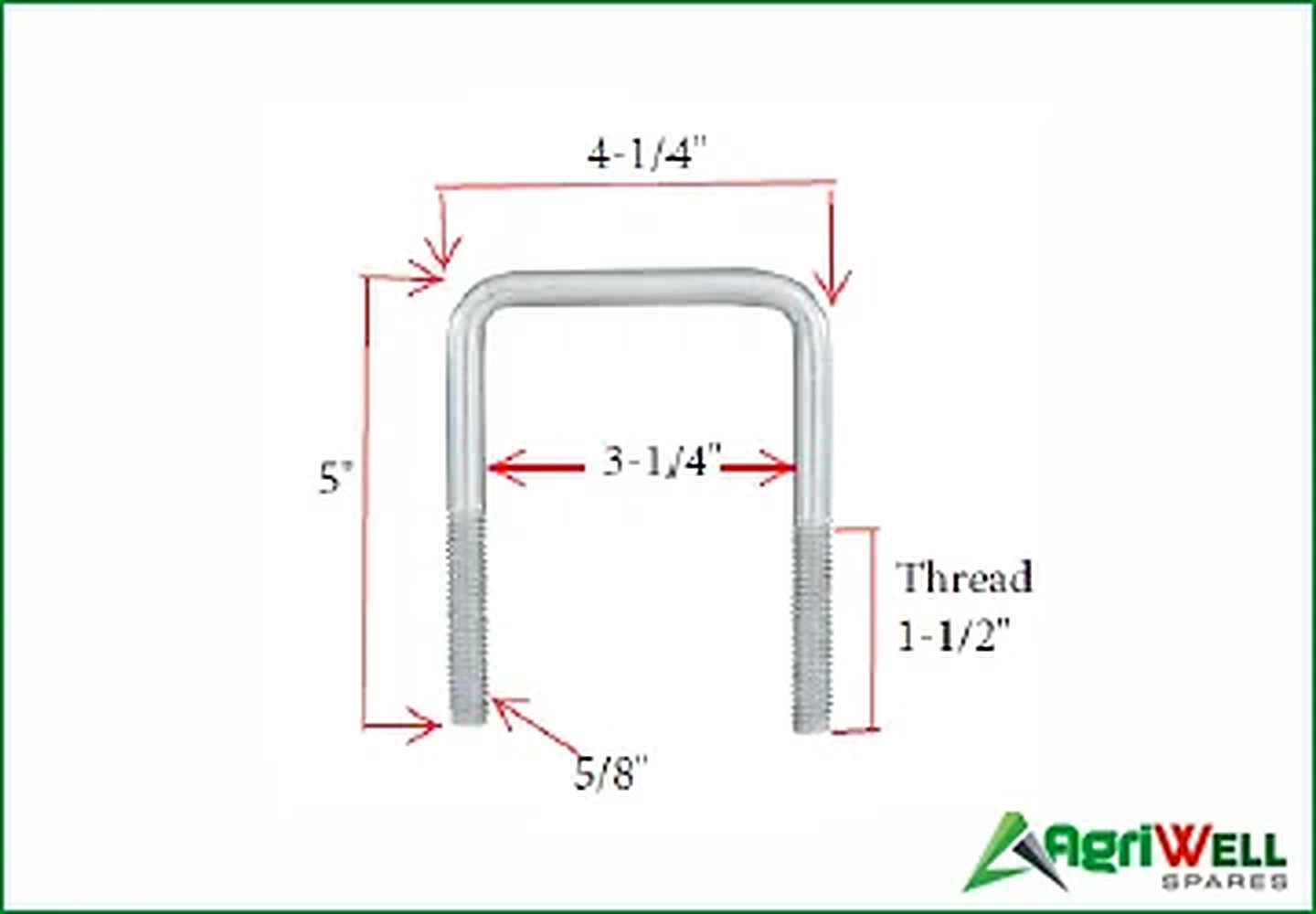

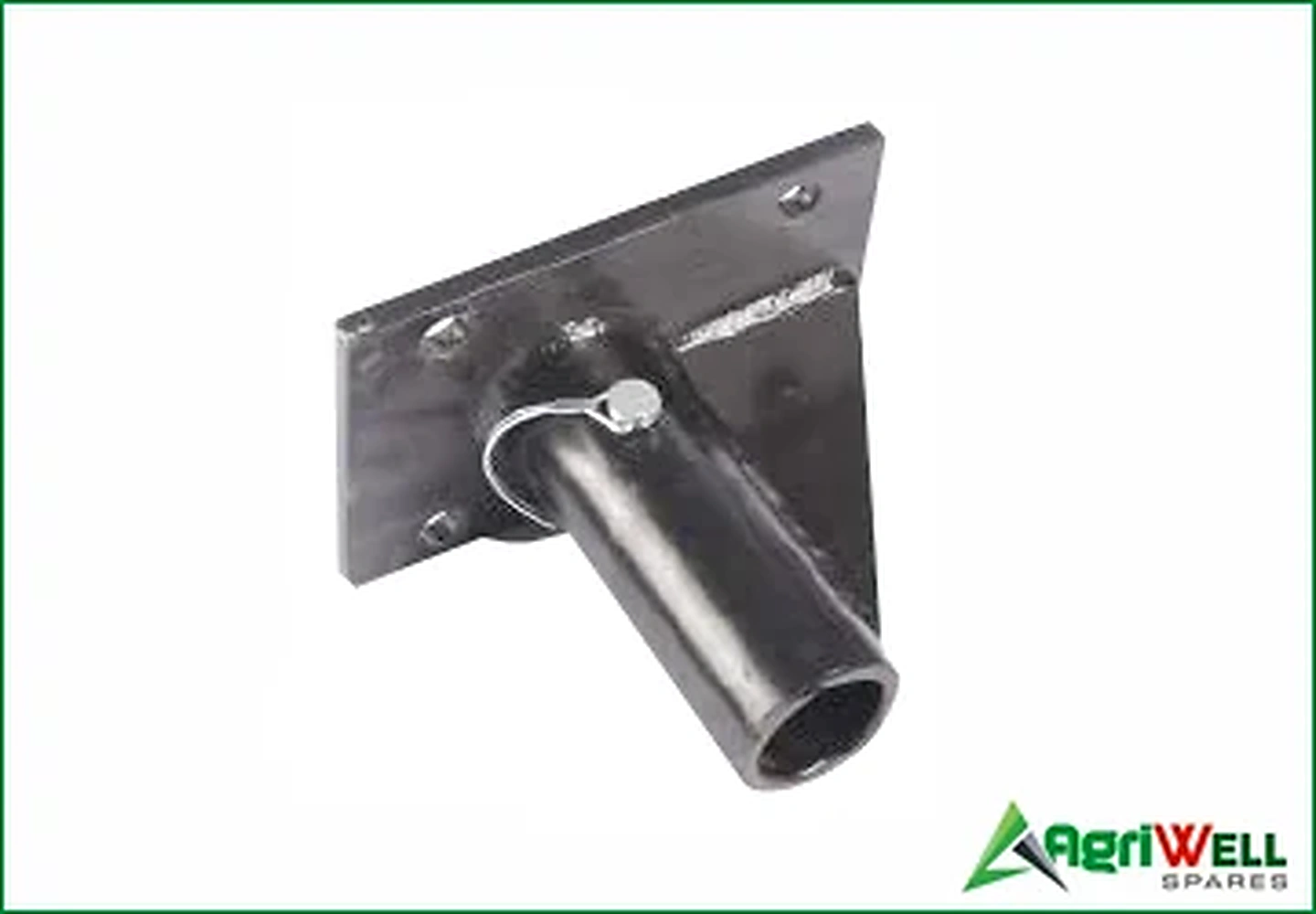

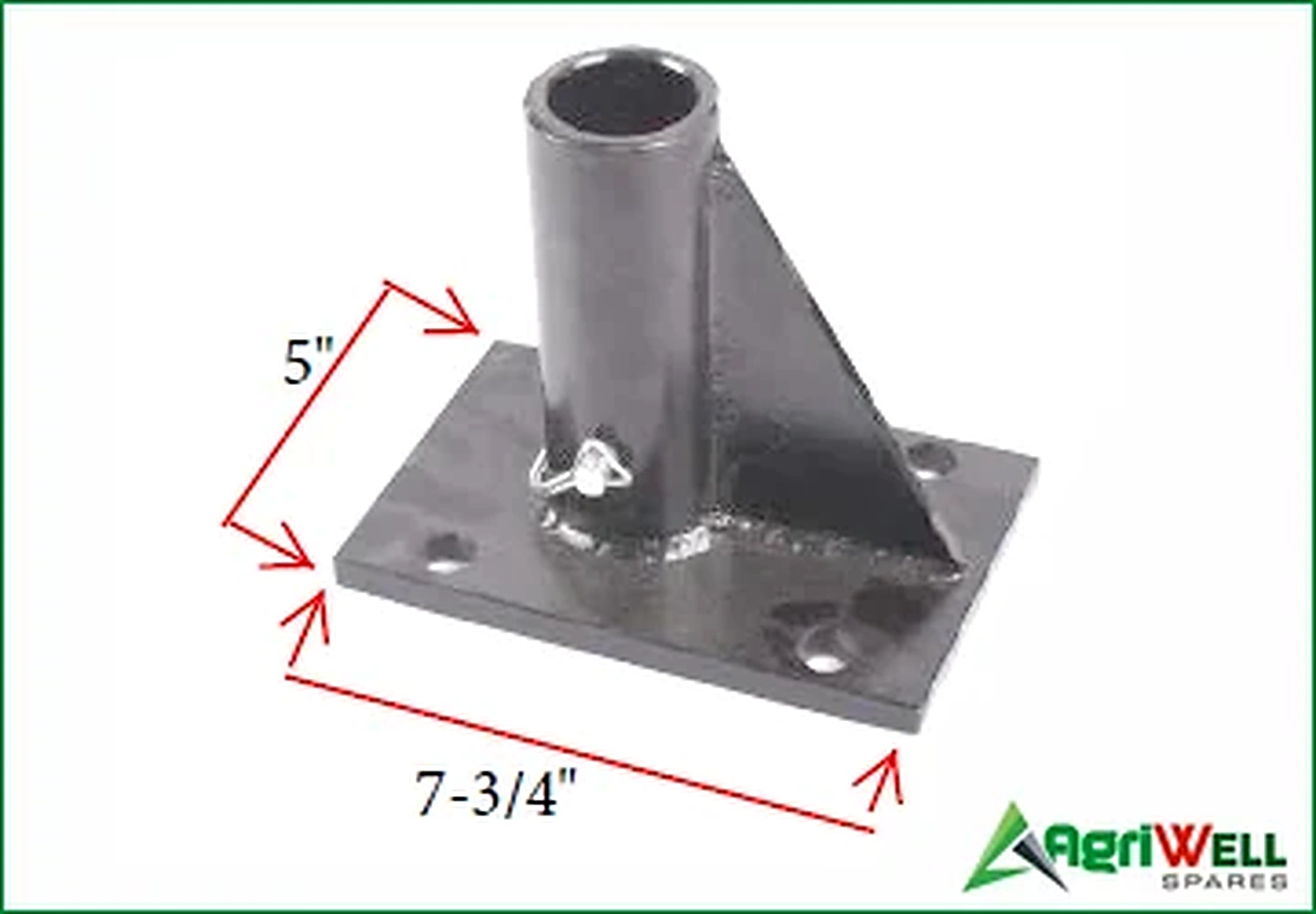

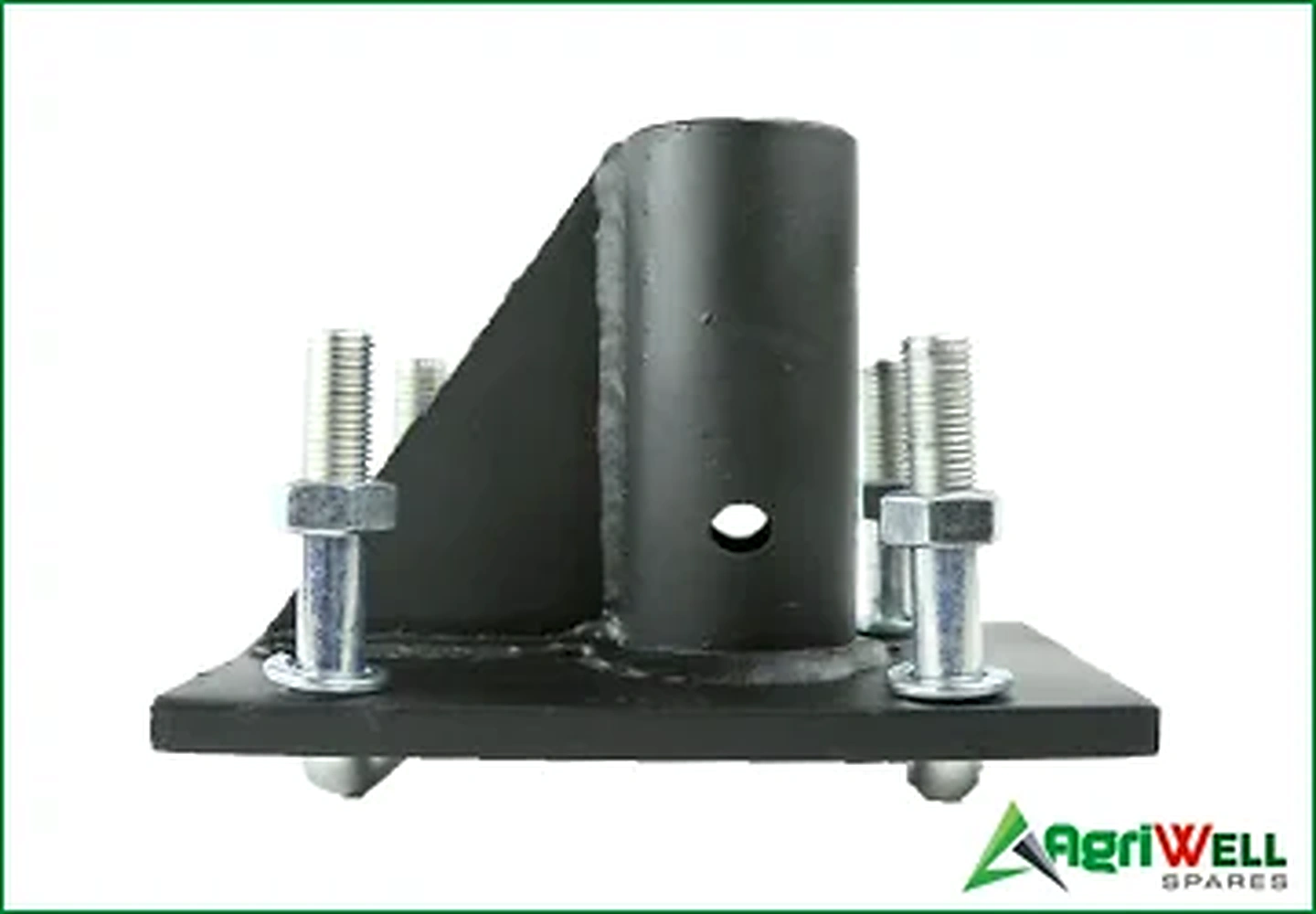

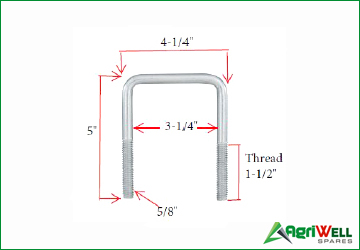

Bolt On-Bale Spear Bracket
PART#AWS60150B45-KIT & PART#AWS60150B42-KIT

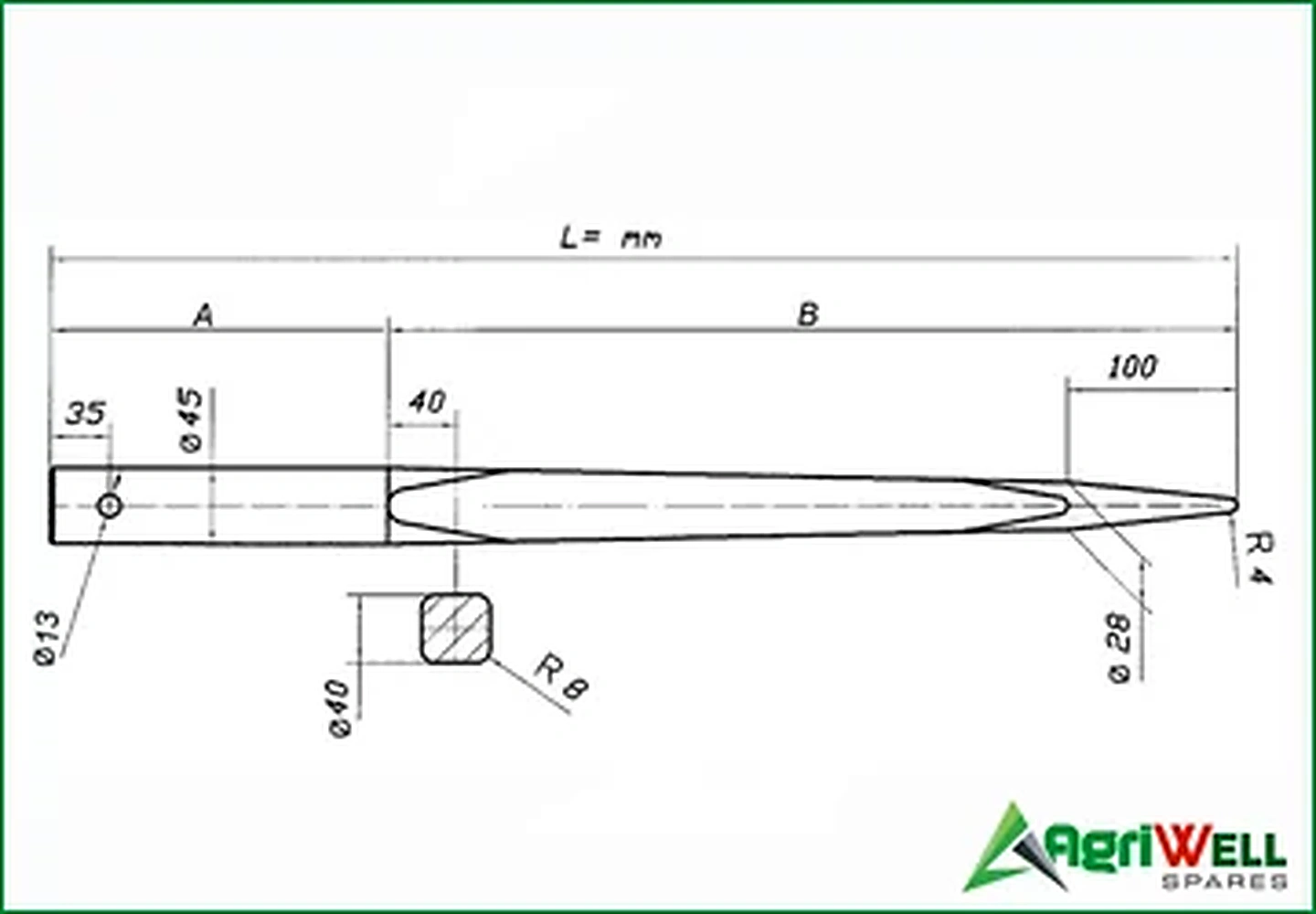

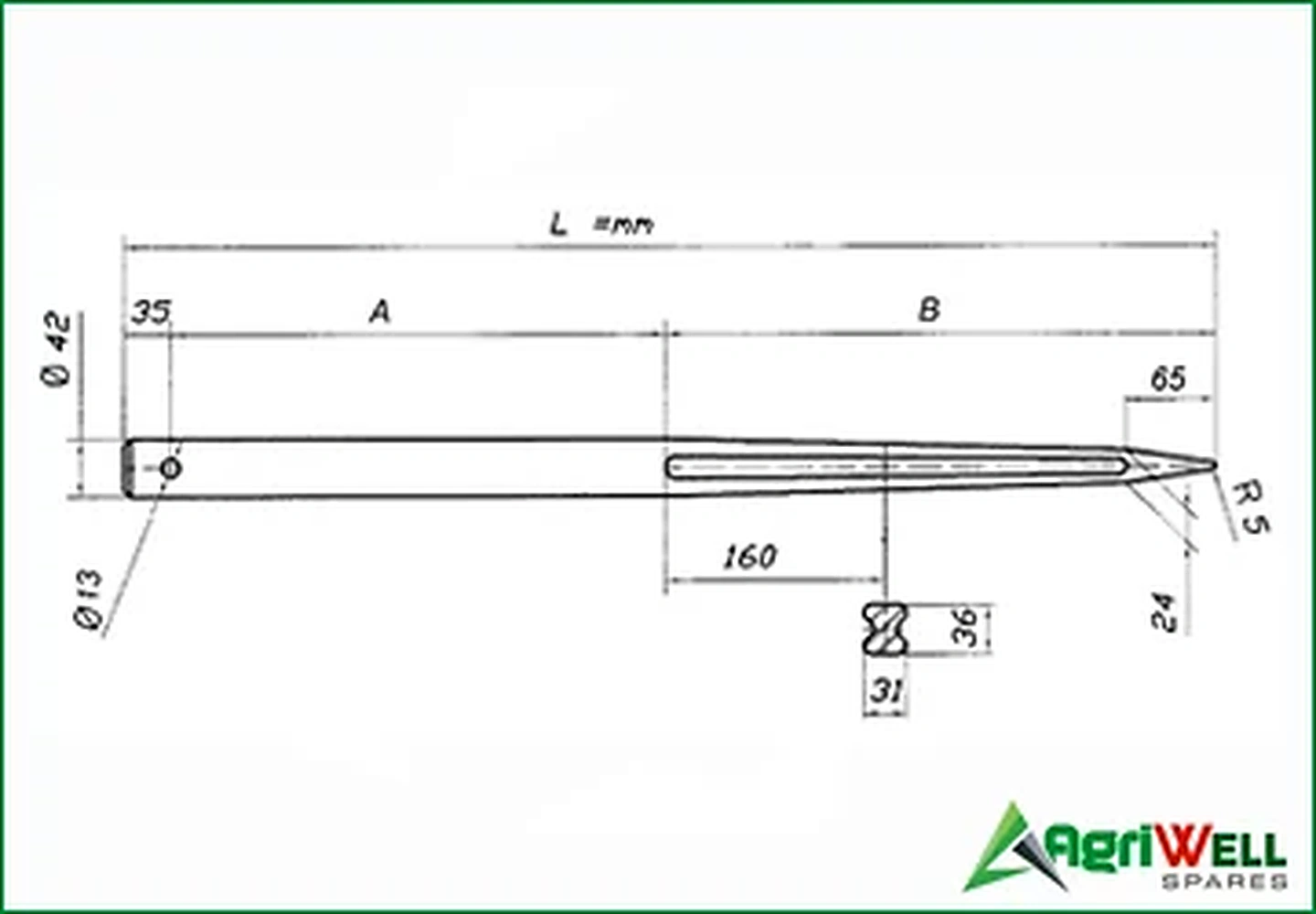

Փ42mm BOLT ON - RIBBED BALE SPEAR
PART No. |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
Wt. (Lbs.) |
AWS42BOR32 |
42mm |
810mm (32") |
645mm (25.4") |
165mm |
3200 Lbs. |
|
AWS42BOR39 |
42mm |
990mm (39") |
645mm (25.4") |
345mm |
3200 Lbs. |
|
AWS42BOR43 |
42mm |
1100mm (43") |
645mm (25.4") |
455mm |
3200 Lbs. |
|
AWS42BOR48 |
42mm |
1225mm (48") |
645mm (25.4") |
580mm |
3200 Lbs. |
|
Փ45mm BOLT ON - SQUARE TAPERED BALE SPEAR
Part No. |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
Wt. (Lbs.) |
AWS45BOS32 |
45mm |
810mm (32") |
625mm (24-5") |
185mm |
3500 Lbs. |
|
AWS45BOS39 |
45mm |
990mm (39") |
625mm (24-5") |
365mm |
3500 Lbs. |
|
AWS45BOS43 |
45mm |
1100mm (43") |
625mm (24-5") |
475mm |
3500 Lbs. |
|
AWS45BOS49 |
45mm |
1250mm (49") |
625mm (24-5") |
625mm |
3500 Lbs. |
|

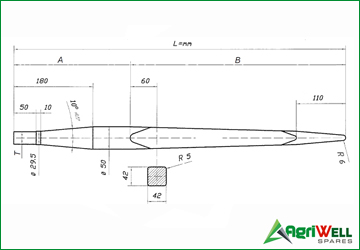

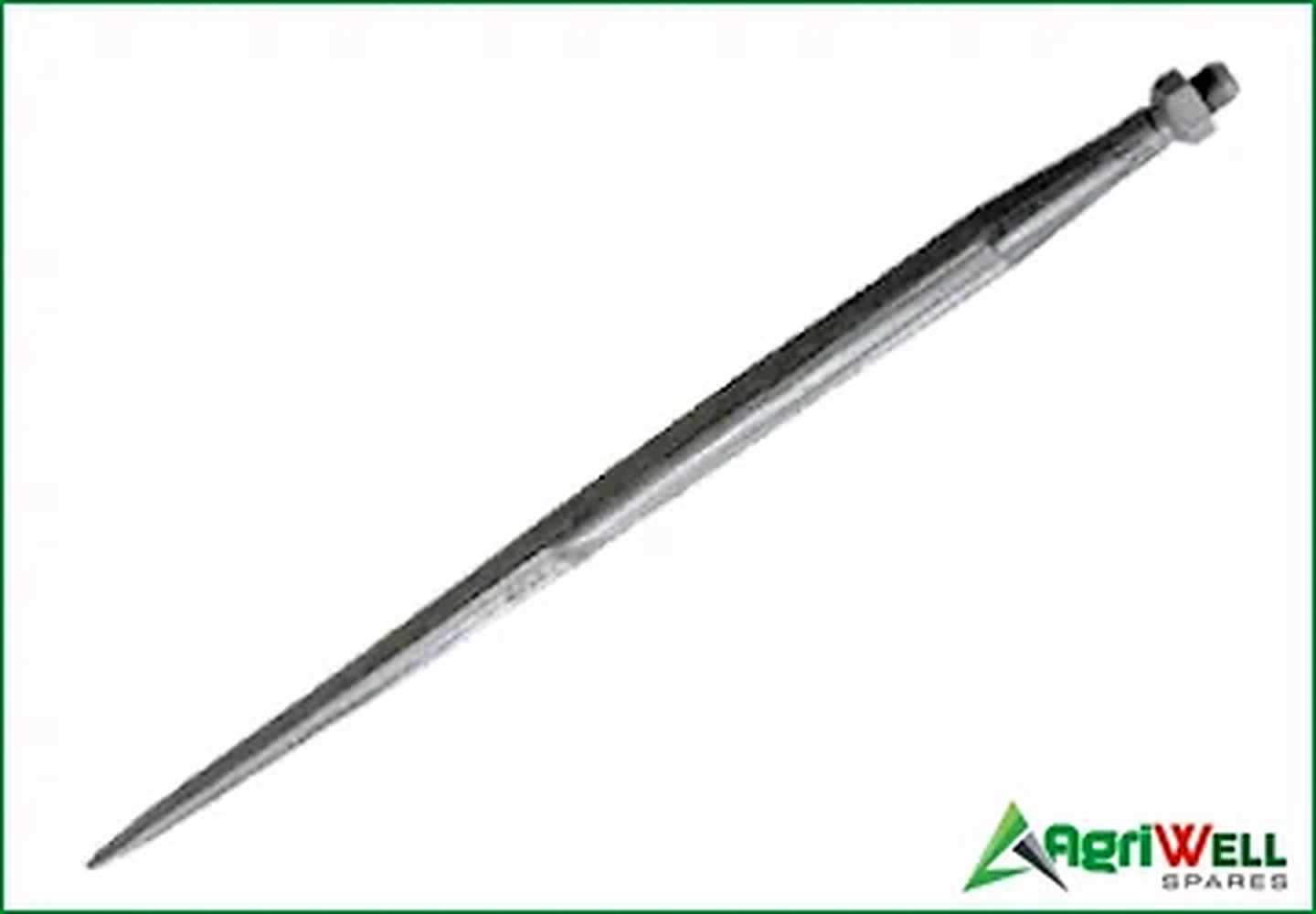

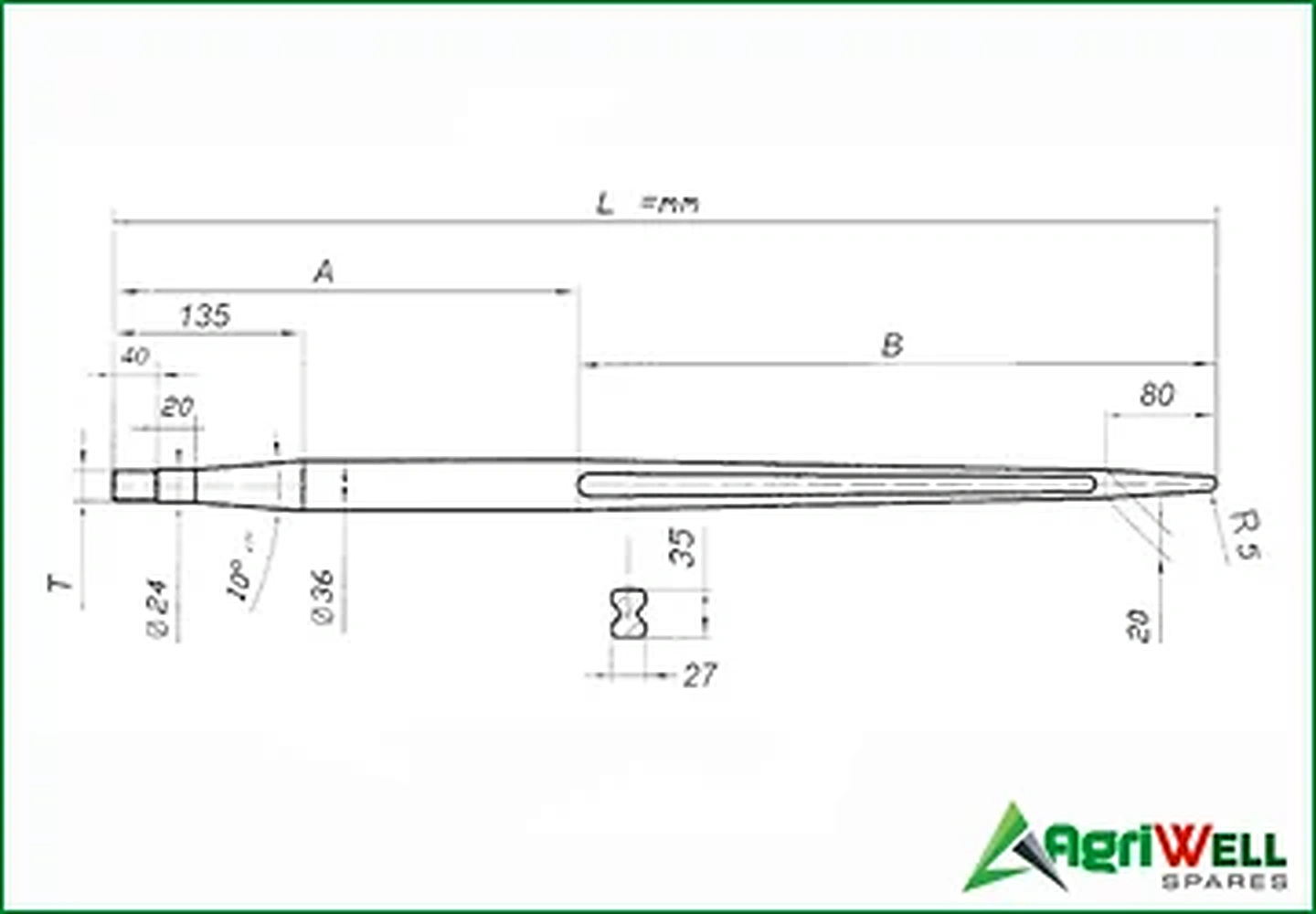

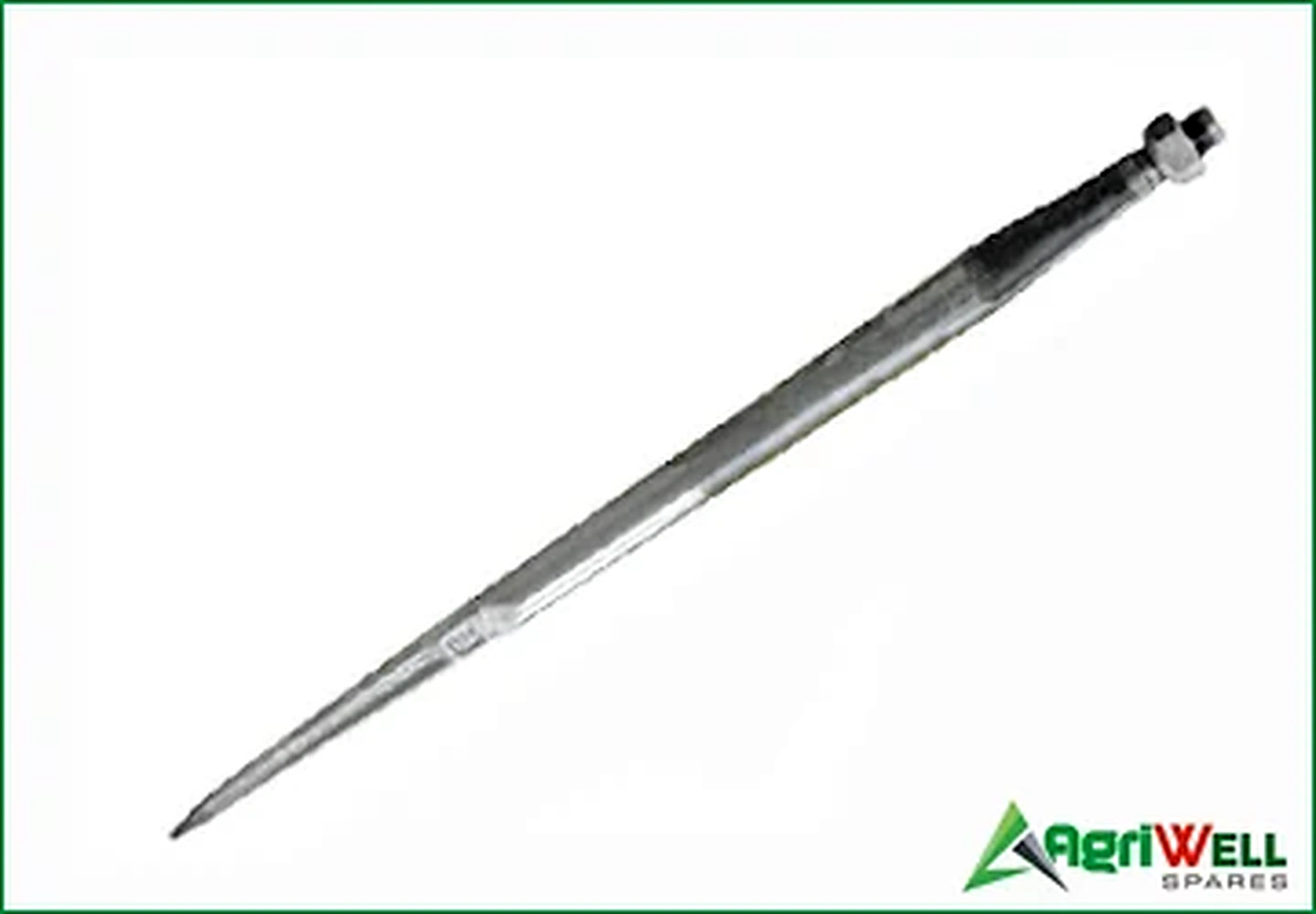

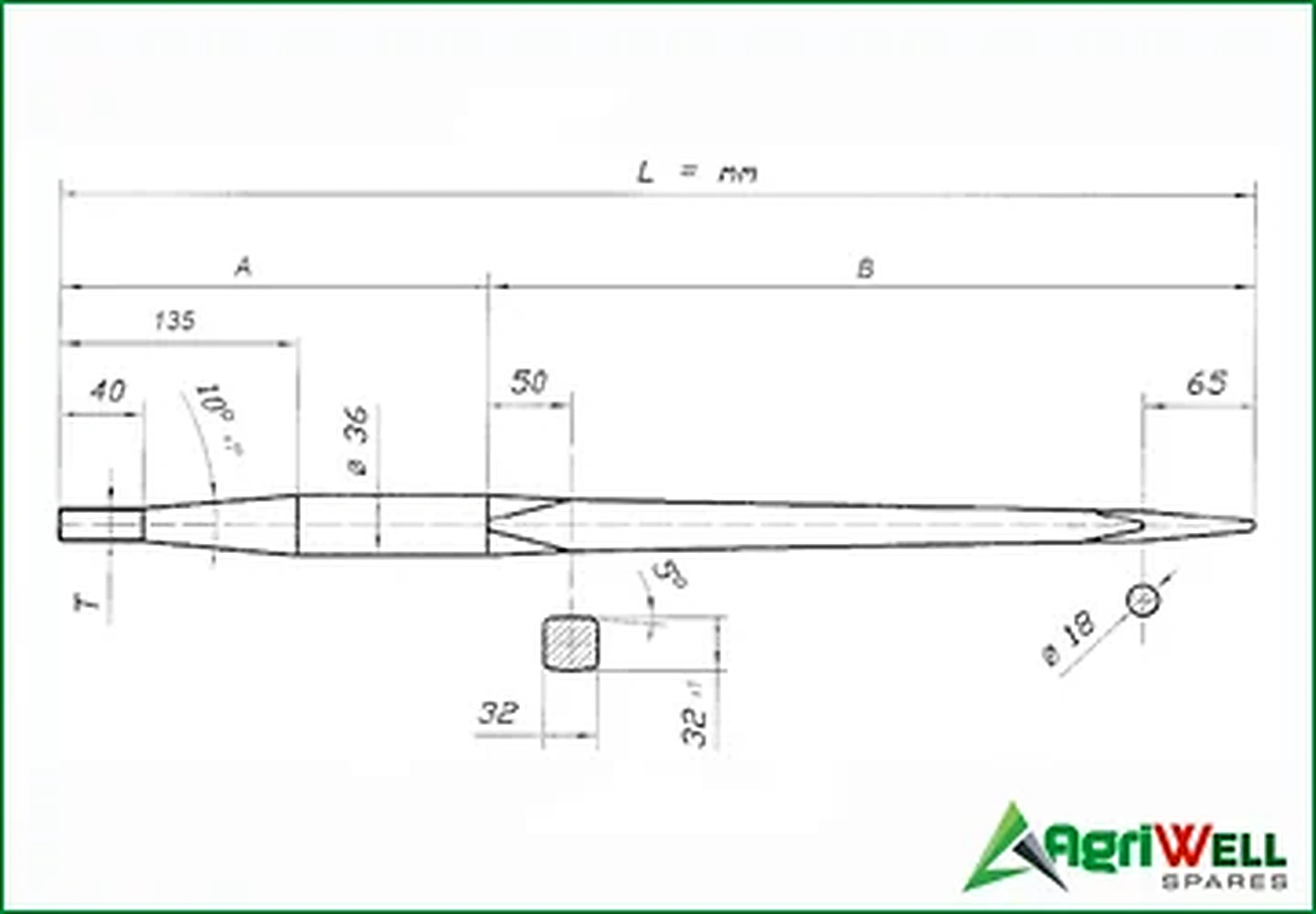

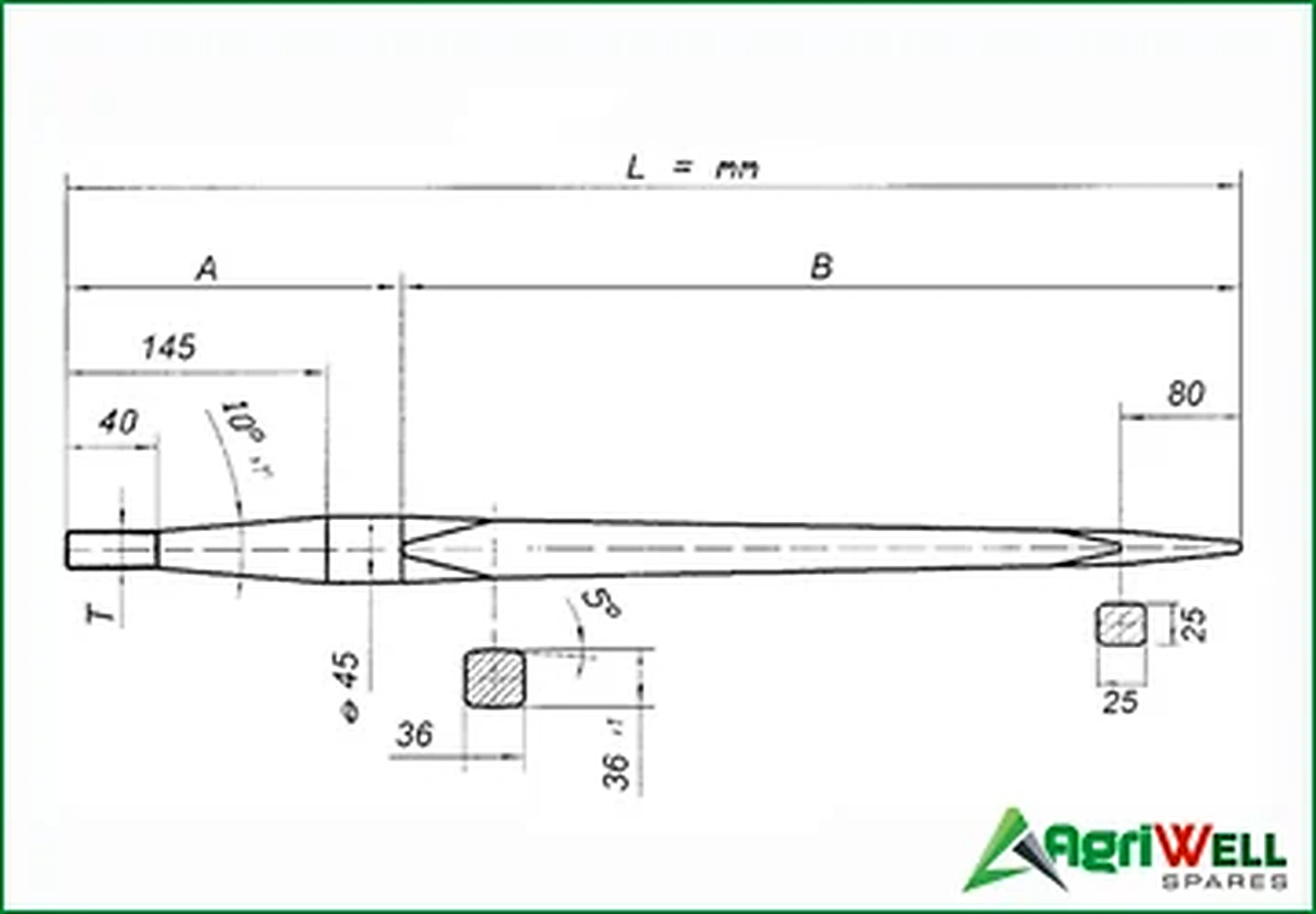

Փ36mm (Conus 1)-RIBBED BALE SPEAR
T1 Part No. (28x1.5) |
T2 # No. (30x2) |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
AWS36R32-28 |
AWS36R32-30 |
36mm |
810mm (32") |
610mm |
200mm |
1500 Lbs. |
AWS36R39-28 |
AWS36R39-30 |
36mm |
990mm (39") |
610mm |
380mm |
1500 Lbs. |
AWS36R43-28 |
AWS36R43-30 |
36mm |
1100mm (43") |
610mm |
490mm |
1500 Lbs. |
AWS36R48-28 |
AWS36R48-30 |
36mm |
1225mm (48") |
610mm |
615mm |
1500 Lbs. |

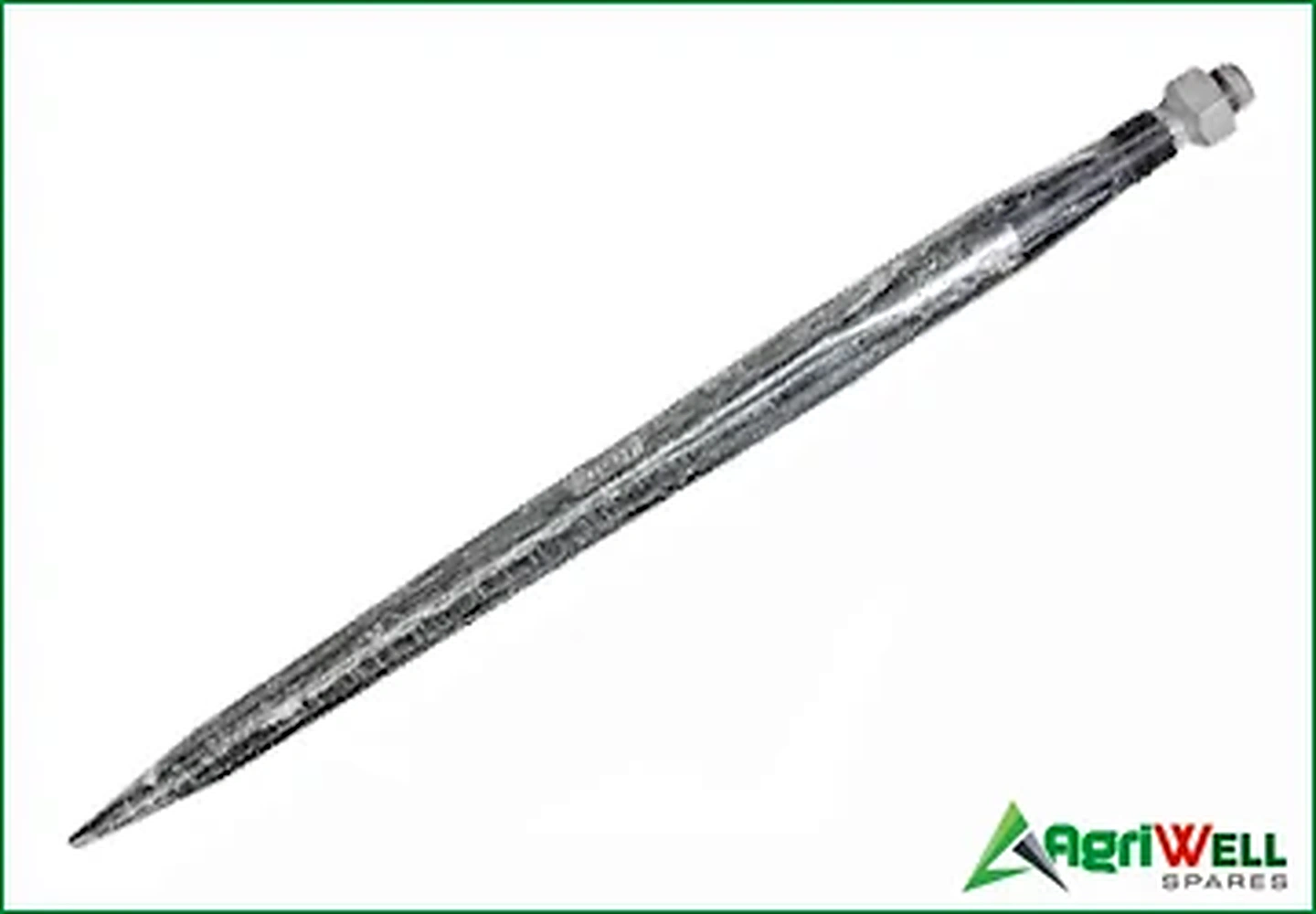

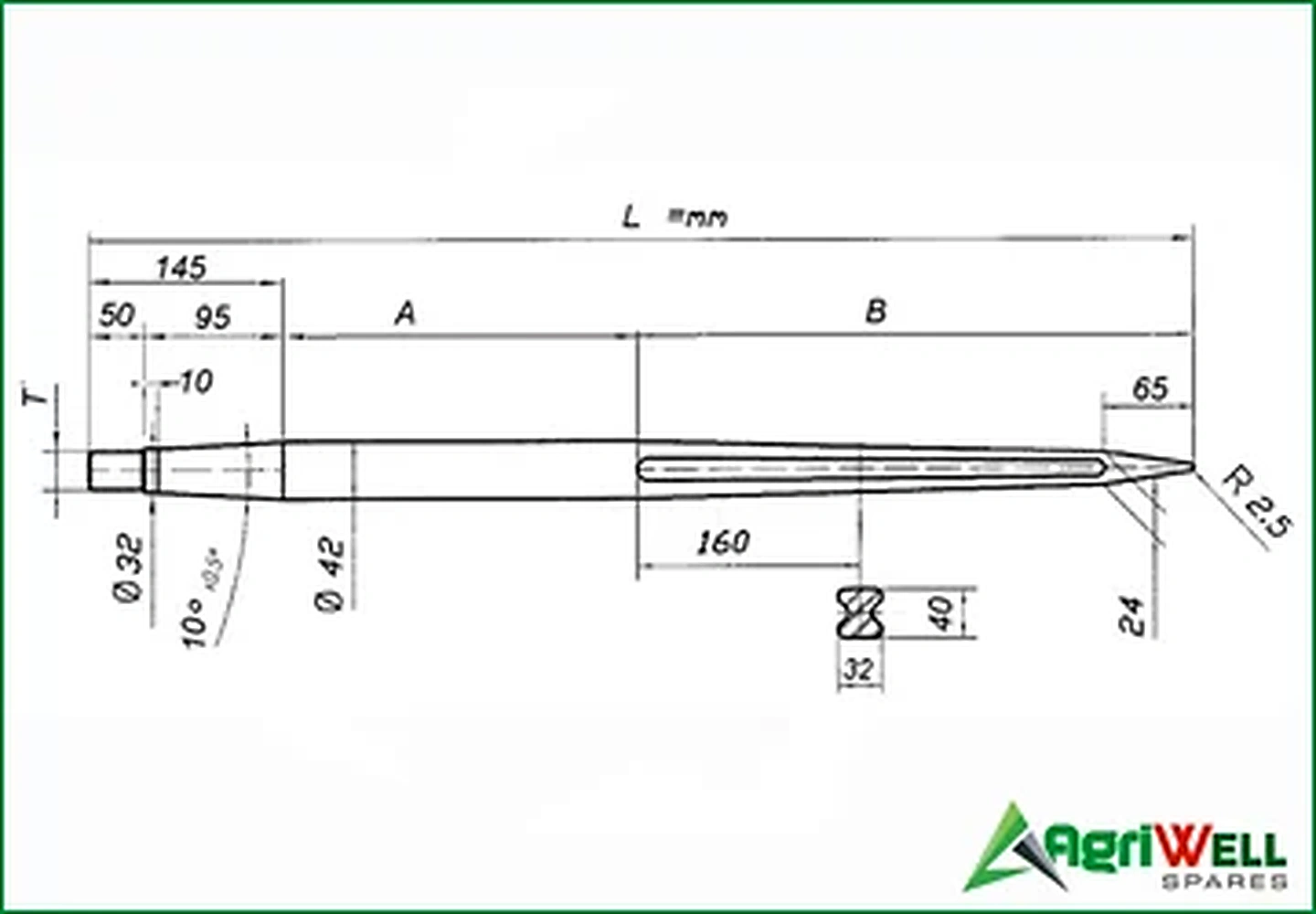

Փ42mm (Conus 2)-RIBBED BALE SPEAR
T= M(28x1.5) Part No. |
T= M(30x2) Part No. |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
AWS42R32-28 |
AWS42R32-30 |
42mm |
810mm (32") |
645mm (25.40") |
165mm |
3200 Lbs. |
AWS42R39-28 |
AWS42R39-30 |
42mm |
990mm(39") |
645mm (25.40") |
345mm |
3200 Lbs. |
AWS42R43-28 |
AWS42R43-30 |
42mm |
1100mm (43") |
645mm (25.40") |
455mm |
3200 Lbs. |
AWS42R48-28 |
AWS42R48-30 |
42mm |
1225mm (48") |
645mm (25.40") |
580mm |
3200 Lbs. |

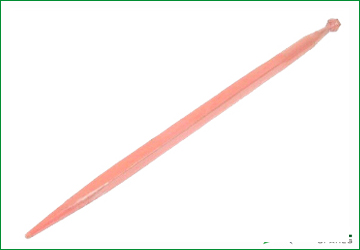

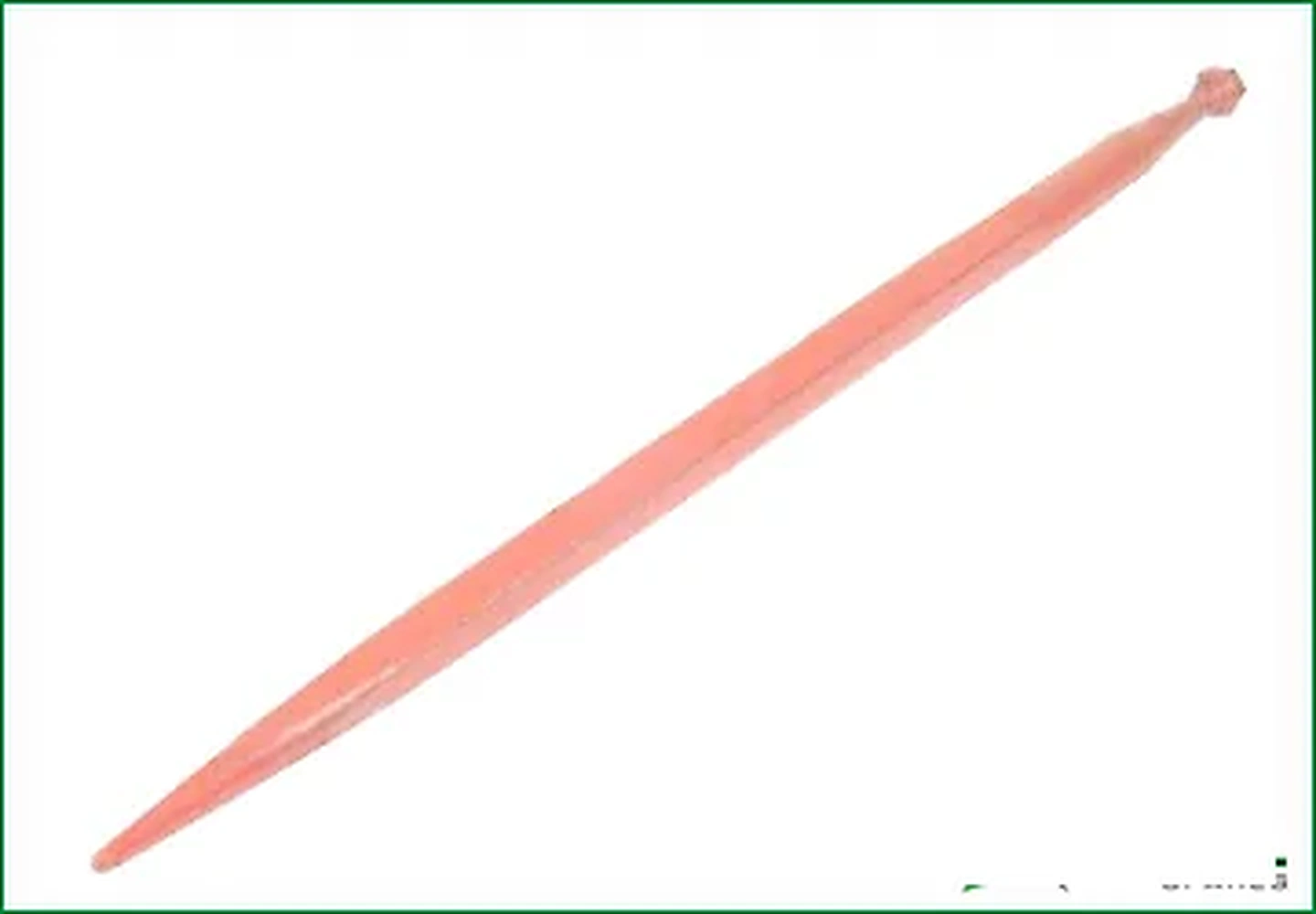

Փ36mm (Conus 1) - SQUARE TAPERED BALE SPEAR
T1 Part No. (20x1.5) |
T2 # No. (22x1.5) |
Dia.Փ |
L |
B |
A |
Max. Load |
AWS36S24-20 |
AWS36S24-22 |
36mm |
610mm (24") |
455mm (18") |
155mm |
1500 Lbs. |
AWS36S27-20 |
AWS36S27-22 |
36mm |
685mm (27") |
455mm (18") |
230mm |
1500 Lbs. |
AWS36S32-20 |
AWS36S32-22 |
36mm |
810mm(32") |
625mm (24.5") |
185mm |
1500 Lbs. |
AWS36S39-20 |
AWS36S39-22 |
36mm |
990mm (29") |
625mm (24.5") |
365mm |
1500 Lbs. |
AWS36S43-20 |
AWS36S43-22 |
36mm |
1100mm(43") |
625mm (24.5") |
475mm |
1500 Lbs. |
AWS36S49-20 |
AWS36S49-22 |
36mm |
1250mm(49") |
625mm (24.5") |
625mm |
1500 Lbs. |

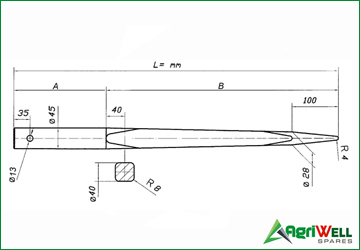

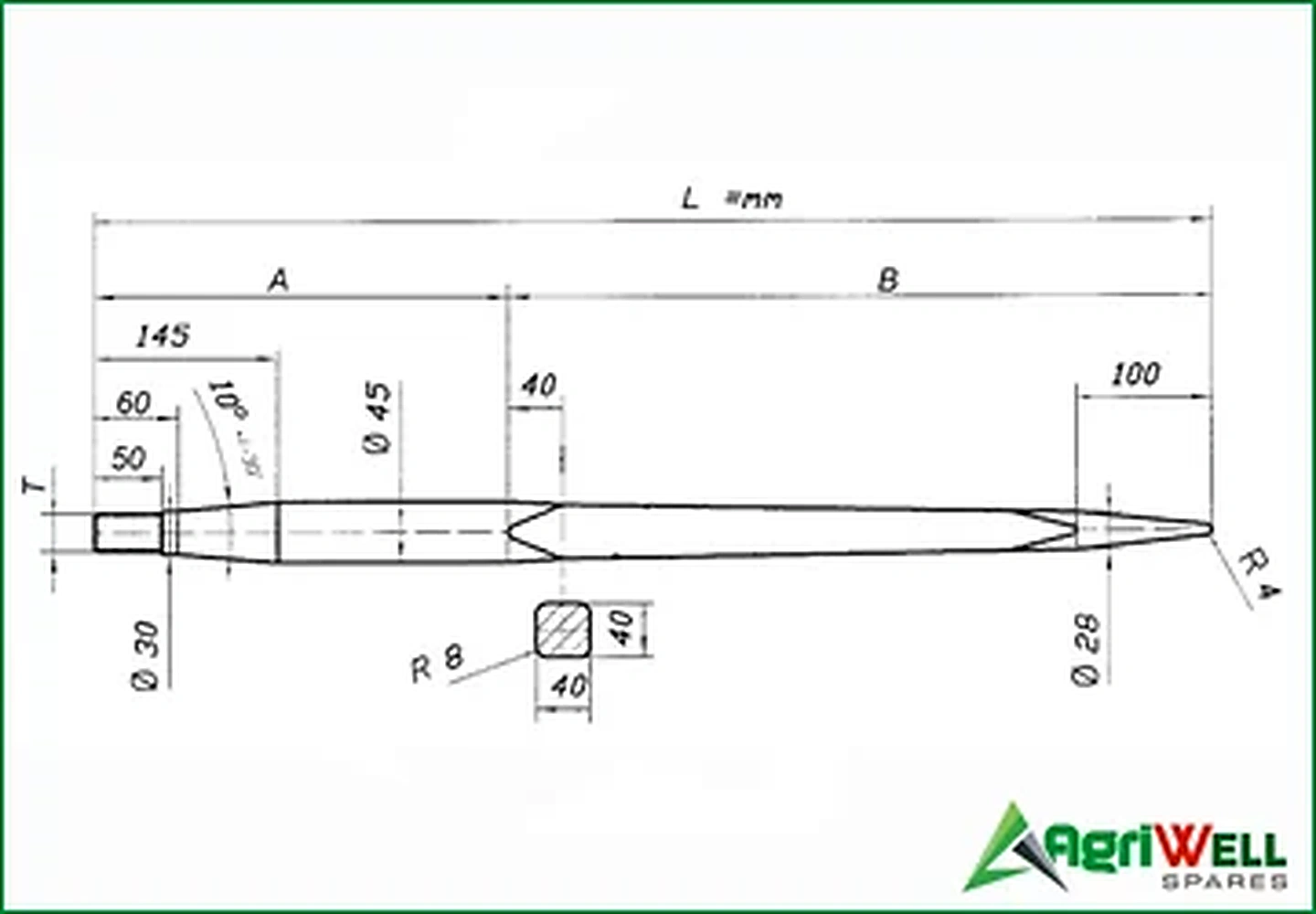

Փ45mm (Conus 2) - Economy SQUARE TAPERED BALE SPEAR
T=M(28x1.5) Part No. |
T2=M(30x2) Part No |
. Dia.Փ |
L |
B |
A |
Max. Load |
AWS45S32-28 |
AWS45S32-30 |
45mm |
810mm (32") |
625mm (24.5") |
185mm |
2700 Lbs. |
AWS45S39-28 |
AWS45S39-30 |
45mm |
990mm (39") |
710mm (28") |
280mm |
2700 Lbs. |
AWS45S43-28 |
AWS45S43-30 |
45mm |
1100mm (43") |
800mm (32") |
300mm |
2700 Lbs. |
AWS45S49-28 |
AWS45S49-30 |
45mm |
1250mm (49") |
800mm (32") |
450mm |
2700 Lbs. |
Փ45mm (Conus 2) - HEAVY DUTY SQUARE TAPERED BALE SPEAR
T=M(28x1.5) Part No. |
T=M(30x2) Part No. |
Dia.Փ |
L |
B |
A |
Max. Load |
AWS45HDS32-28 |
AWS45HDS32-30 |
45mm |
810mm (32") |
625mm (24-1/2") |
185mm |
3500 Lbs. |
AWS45HDS39-28 |
AWS45HDS39-30 |
45mm |
990mm (39") |
625mm (24-1/2") |
365mm |
3500 Lbs. |
AWS45HDS43-28 |
AWS45HDS43-30 |
45mm |
1100mm (43") |
625mm (24-1/2") |
475mm |
3500 Lbs. |
AWS45HDS49-28 |
AWS45HDS49-30 |
45mm |
1250mm (49") |
625mm (24-1/2") |
625mm |
3500 Lbs. |

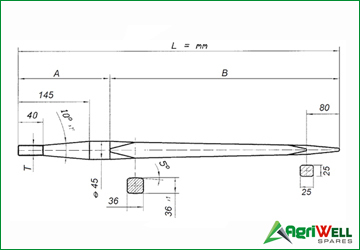

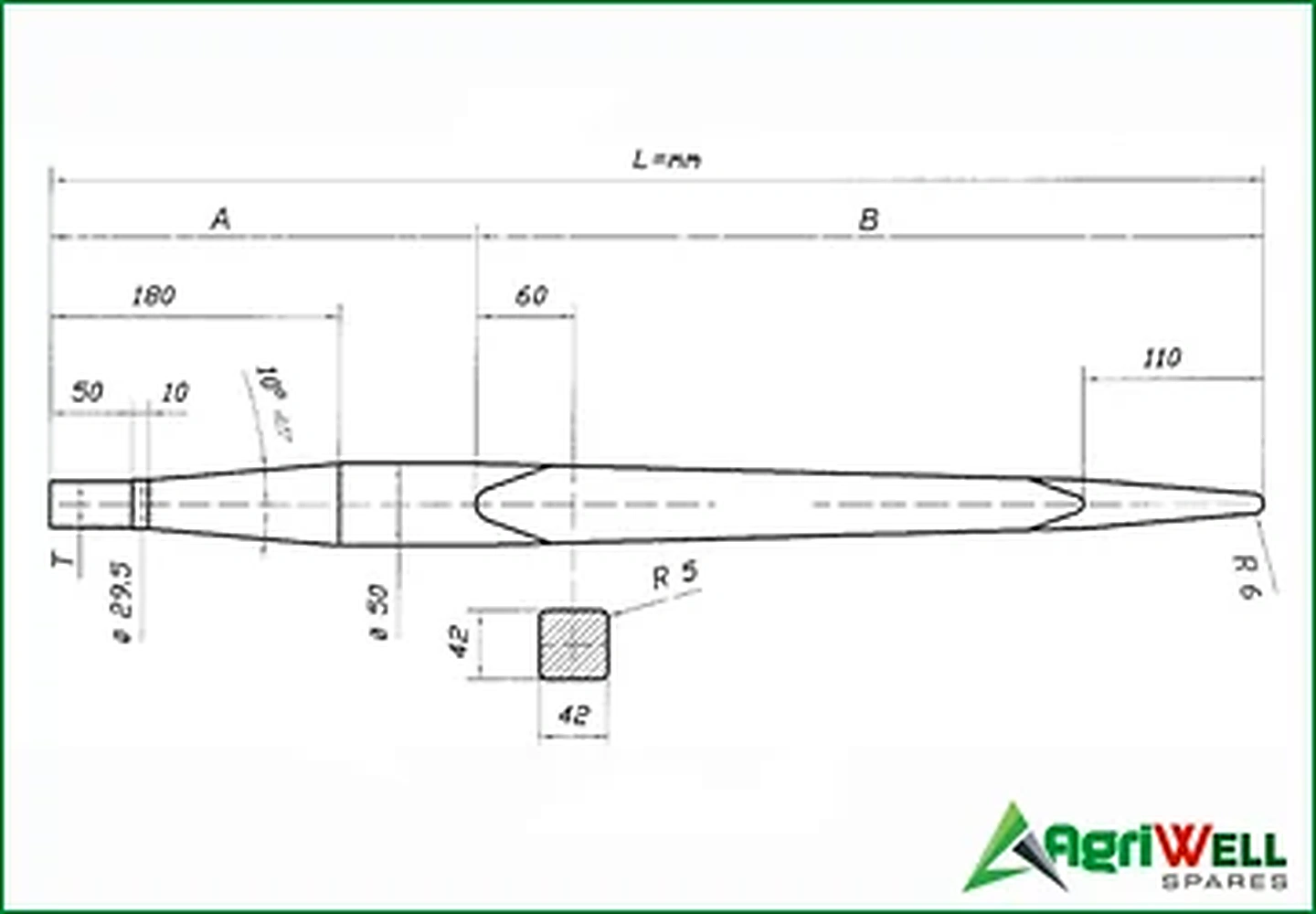

Փ50mm- EXTRA HEAVY DUTY SQUARE TAPERED BALE SPEAR
T= M(28x1.5) Part No. |
T= M(30x2) Part No. |
Dia.Փ |
L |
B |
A |
Max. Load |
AWS50HDS32-28 |
AWS50HDS32-30 |
50mm |
810mm (32") |
625 (24-1/2") |
185mm |
4800 Lbs. |
AWS50HDS39-28 |
AWS50HDS39-30 |
50mm |
990mm (39") |
625 (24-1/2") |
365mm |
4800 Lbs. |
AWS50HDS43-28 |
AWS50HDS43-30 |
50mm |
1100mm (43") |
625 (24-1/2") |
475mm |
4800 Lbs. |
AWS50HDS49-28 |
AWS50HDS49-30 |
50mm |
1250mm (49") |
625 (24-1/2") |
625mm |
4800 Lbs. |
AWS50HDS55-28 |
AWS50HDS55-30 |
50mm |
1400mmm (55") |
625 (24-1/2") |
775mm |
4800 Lbs. |
