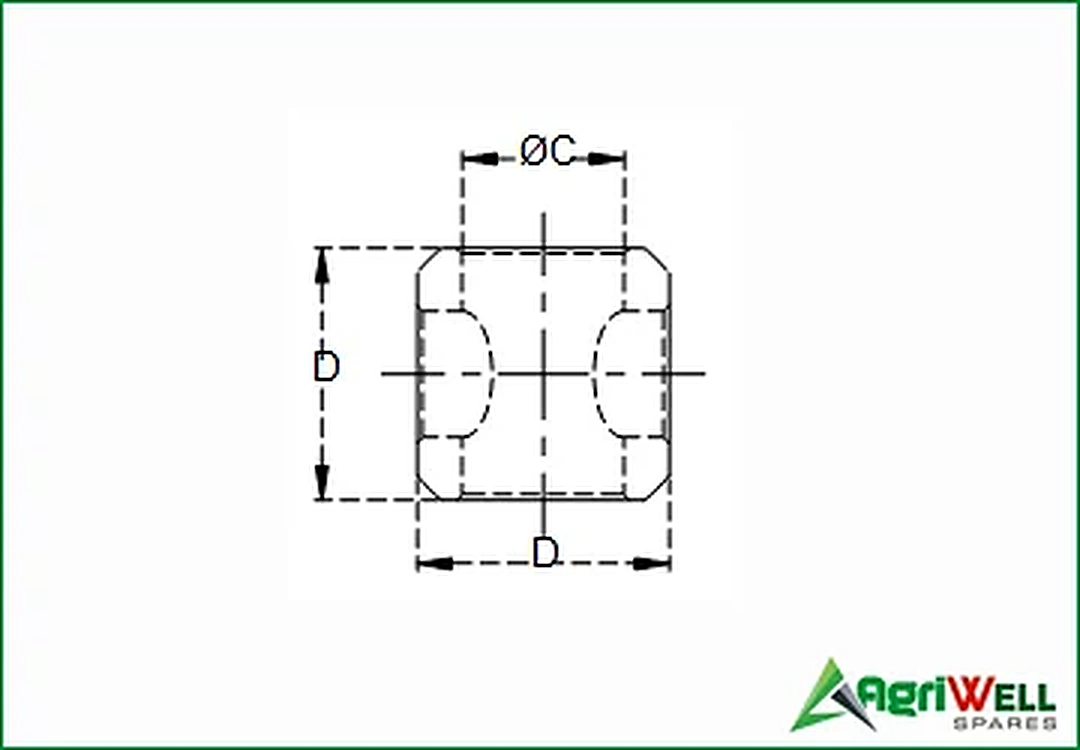

BALL- DOUBLE BORE
Part Number |
Dia.ØA (mm) |
Dia.ØB (mm) |
Dia.ØC (mm) |
Dia.ØD (mm) |
LLBD-57222545 |
57 |
22.5 |
28.7 |
44.5 |

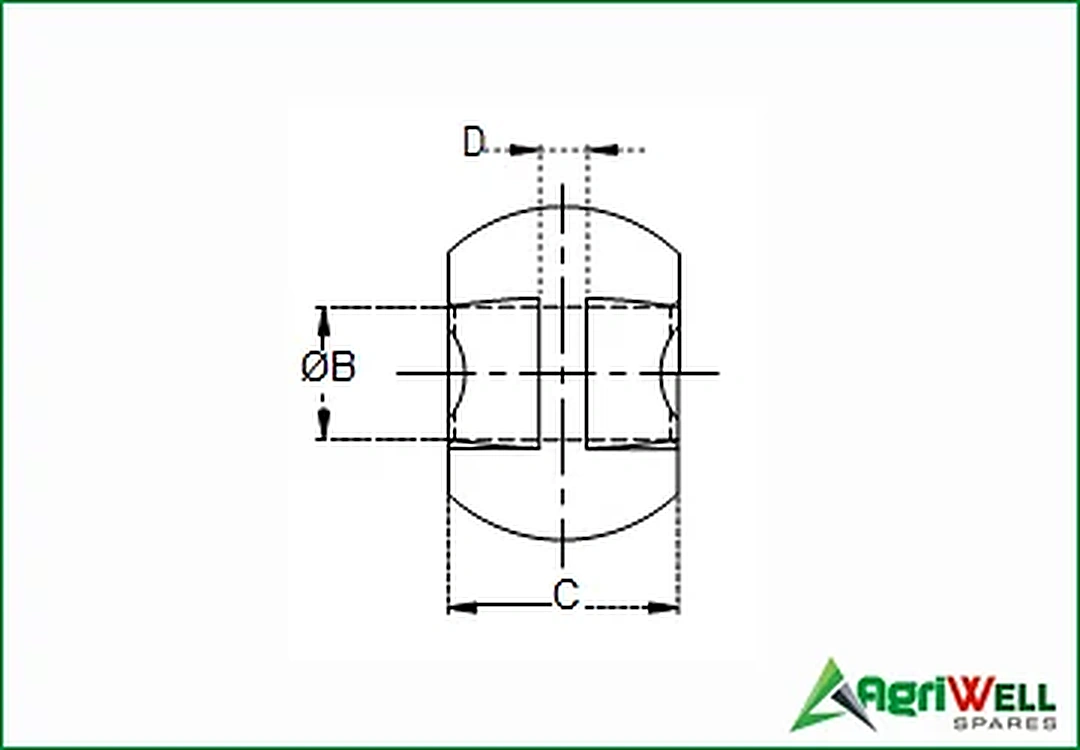

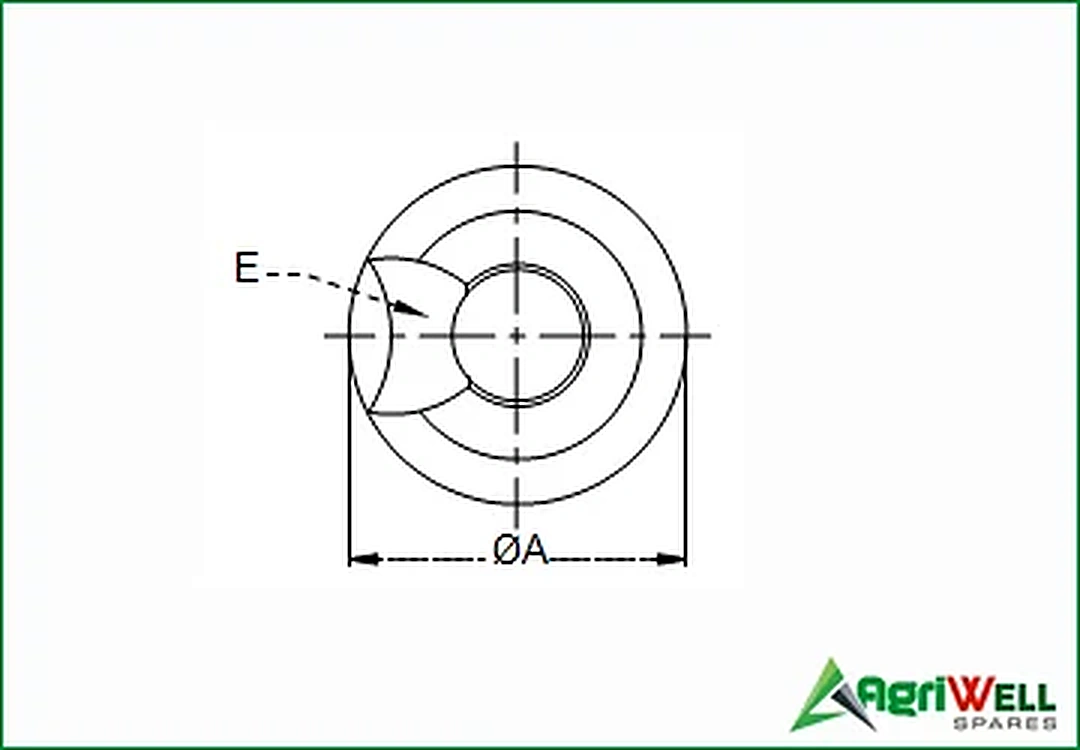

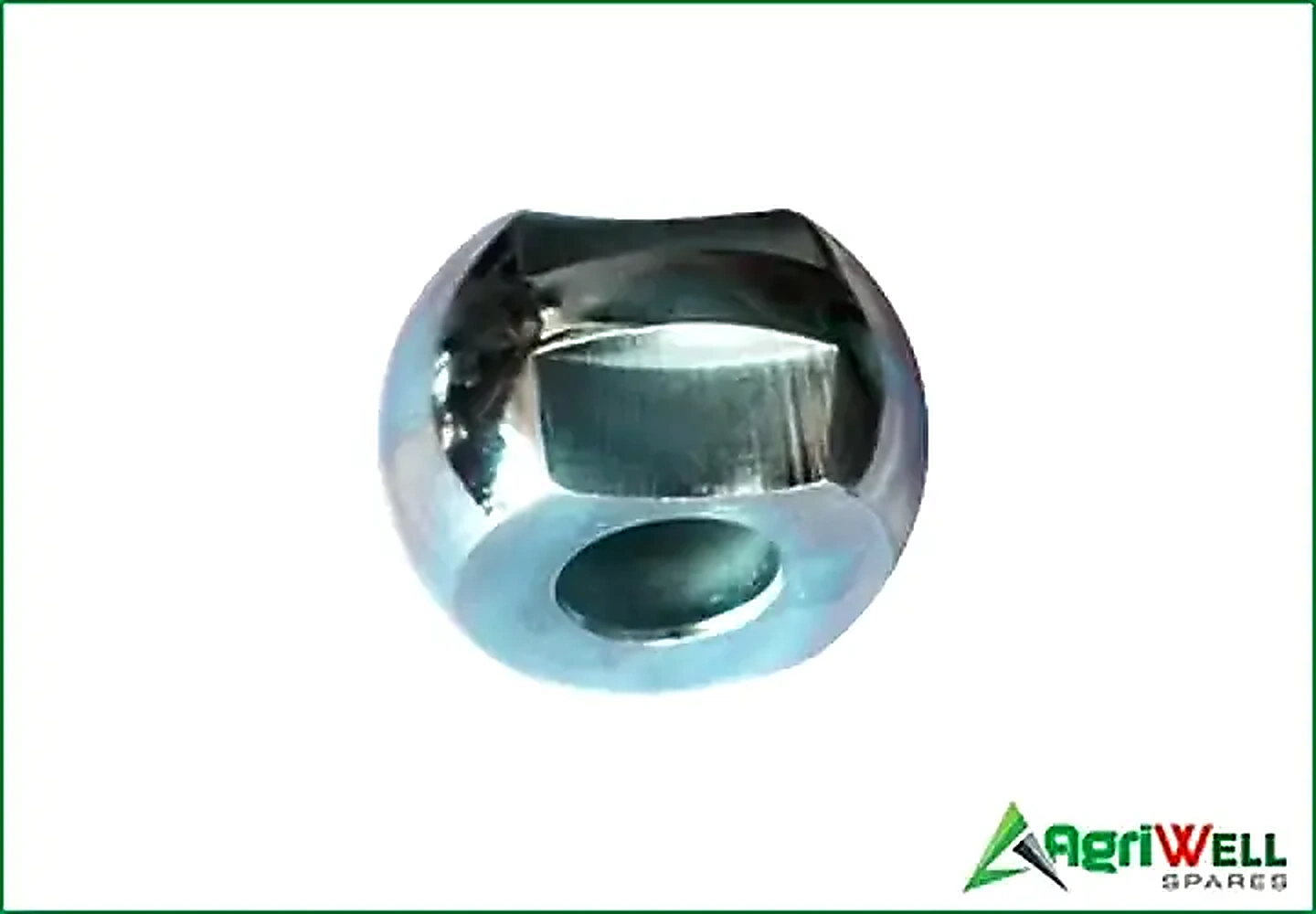

BALL- WITH CUT
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
LLBC-56223810 |
56.5 |
22 |
35 |
10 |
R35 |
LLBC-56284510 |
56.5 |
28.6 |
44.5 |
10 |
R35 |

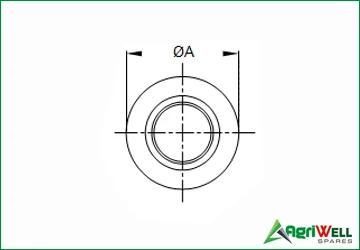

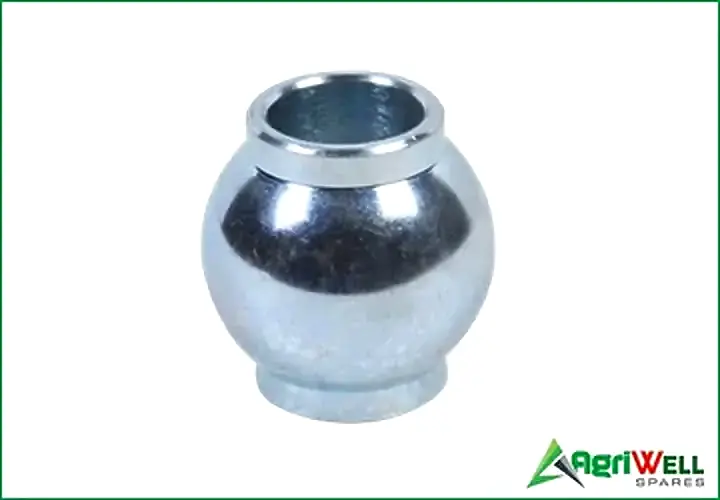

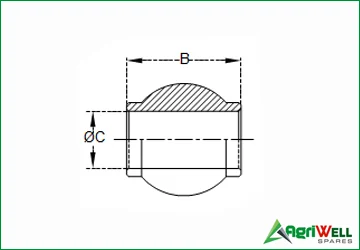

TOP LINK BALLS
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dia. ØC (mm) |
Ref. Number |
TLB-322516 |
32 |
25.4 |
16 |
|
TLB-382515 |
38 |
25.4 |
15.9 |
|
TLB-384119 |
38 |
41 |
19 |
|
TLB-384419 |
38 |
44 |
19 |
|
TLB-384420 |
38 |
44 |
20 |
|
TLB-504419 |
50 |
44 |
19 |
|
TLB-464420 |
46 |
44 |
20 |
|
TLB-464225 |
46 |
42 |
25.4 |
|
TLB-464425 |
46 |
44 |
25.4 |
|
TLB-465125 |
46 |
51 |
25.4 |
|
TLB-505122 |
50 |
51 |
22.1 |
|
TLB-504425 |
50 |
44 |
25.4 |
|
TLB-505125 |
50 |
51 |
25.4 |
01504 |
TLB-514425 |
50.8 |
44.5 |
25.4 |
|
TLB-514428 |
50.8 |
44.5 |
28.4 |
|
TLB-545125 |
54 |
51 |
25.4 |
|
TLB-545530 |
54 |
55 |
30 |
|
TLB-545132 |
54 |
51 |
32 |
|
TLB-545535 |
54 |
55 |
35 |
|
TLB-615125 |
60 |
51 |
25.4 |
05118 |
TLB-605132 |
60 |
51 |
32 |
05130 |
TLB-383522 |
38 |
35 |
22.1 |
|
TLB-445120 |
44 |
51 |
20 |
|
TLB-424419 |
42 |
44 |
19 |
|
TLB-465122 |
46 |
51 |
22.1 |
|
TLB-464528 |
46 |
45 |
28.4 |
|
TLB-463522 |
46 |
35 |
22.1 |
|
TLB-464422 |
46 |
44.5 |
22.1 |
|
TLB-465026 |
46 |
50 |
26 |
|
TLB-465125 |
46 |
51 |
25.4 |
|
TLB-465120 |
46 |
51 |
20 |
|
TLB-485025 |
48 |
50 |
25.4 |
|
TLB-504422 |
50 |
44.5 |
22.1 |
|
TLB-505119 |
50 |
51 |
19 |
|
TLB-504528 |
50 |
45 |
28.6 |
|
TLB-504925 |
50 |
49 |
25.4 |
|
TLB-505130 |
50 |
51 |
30 |
|
TLB-505122 |
50 |
51 |
22.1 |
|
TLB-505125 |
50 |
51 |
25.2 |
|
TLB-424528 |
52 |
45 |
28.6 |
|
TLB-544432 |
54 |
44 |
32 |
|
TLB-544420 |
54 |
44 |
20 |
|
TLB-544422 |
54 |
44 |
22.1 |
|
TLB-544528 |
54 |
45 |
28.4 |
|
TLB-545134 |
54 |
51 |
34 |
|
TLB-545532 |
54 |
55 |
32 |
|
TLB-546019 |
54 |
60 |
19 |
|
TLB-545030 |
54 |
50 |
30 |
|
TLB-545035 |
54 |
50 |
35 |
|
TLB-545130 |
54 |
51 |
30 |
|
TLB-565125 |
56 |
51 |
25.4 |
|
TLB-605128 |
60 |
51 |
28.4 |
|
TLB-605137 |
60 |
51 |
37 |
|
TLB-625125 |
62 |
51 |
25.4 |
|
TLB-625132 |
62 |
51 |
32 |
|
TLB-645528 |
64 |
55 |
28.6 |
|
TLB-787550 |
78 |
75 |
50 |
|
TLB-787545 |
78 |
75 |
45 |
|
TLB-787540 |
78 |
75 |
40 |
|
TLB-786540 |
78 |
65 |
40 |
|

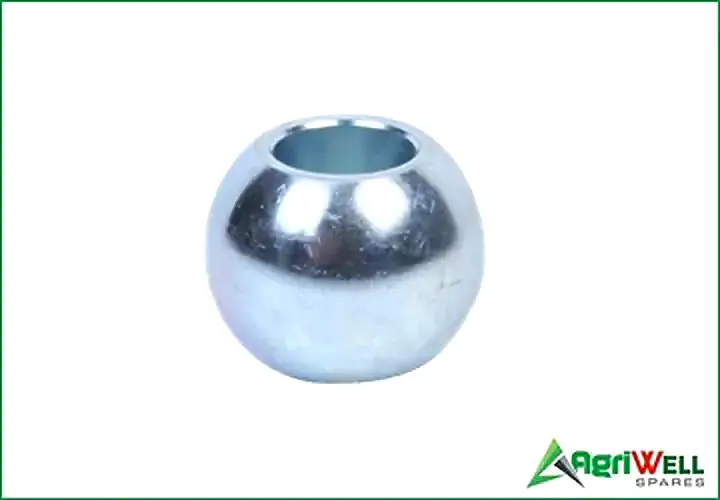

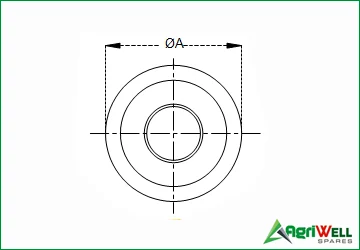

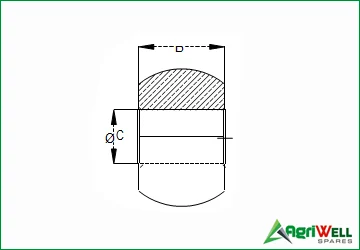

BALLS LOWER LINK
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dia. ØC (mm) |
Ref. Number |
ALB-282016 |
28 |
20 |
16 |
|
ALB-322516 |
32 |
25.4 |
16 |
|
ALB-382516 |
38 |
25.4 |
16 |
|
ALB-383019 |
38 |
30 |
19 |
|
ALB-382720 |
38 |
27 |
20 |
|
ALB-443522 |
44 |
35 |
22.1 |
1RO443522 |
ALB-443022 |
44 |
30 |
22 |
|
ALB-443425 |
44 |
34 |
25.4 |
|
ALB-443519 |
44 |
35 |
19 |
|
ALB-443522 |
44.5 |
35 |
22.1 |
|
ALB-463428 |
46 |
33.5 |
28.4 |
|
ALB-463525 |
46 |
35 |
25.4 |
|
ALB-463428 |
46 |
33.5 |
28.4 |
|
ALB-463528 |
46 |
35 |
28.4 |
|
ALB-483522 |
48 |
35 |
22.1 |
|
ALB-483525 |
48 |
35 |
25.4 |
|
ALB-483528 |
48 |
35 |
28.4 |
|
ALB-504028 |
50 |
40 |
25.4 |
|
ALB-504029 |
50 |
40 |
29 |
|
ALB-503422 |
50 |
34 |
22.1 |
|
ALB-503420 |
50 |
34 |
20 |
|
ALB-503424 |
50 |
34 |
24 |
|
ALB-503428 |
50 |
34 |
28 |
|
ALB-503430 |
50 |
34 |
30 |
|
ALB-503425 |
50 |
34 |
25.4 |
|
ALB-504425 |
50 |
44 |
25.4 |
|
ALB-504028 |
50 |
39.5 |
28.4 |
|
ALB-503825 |
50 |
38 |
25.4 |
|
ALB-503828 |
50 |
38 |
28.4 |
|
ALB-512538 |
50.8 |
25 |
38 |
|
ALB-545535 |
54 |
55 |
35 |
|
ALB-543535 |
54 |
35 |
35 |
|
ALB-544230 |
54 |
42 |
30 |
|
ALB-554428 |
55 |
44 |
28.4 |
|
ALB-563522 |
56 |
35 |
22.1 |
00192 |
ALB-564522 |
56 |
45 |
22.1 |
01500 |
ALB-563525 |
56 |
35 |
25.4 |
05011 |
ALB-563525 |
56 |
35 |
28.4 |
00193 |
ALB-563825 |
56 |
38 |
28.4 |
|
ALB-564528 |
56 |
45 |
28 |
15001 |
ALB-564528 |
56 |
45 |
28.4 |
01501 |
ALB-564529 |
56 |
44.5 |
29 |
|
ALB-563529 |
56 |
35 |
29 |
|
ALB-573522 |
57 |
35 |
22.1 |
|
ALB-573525 |
57 |
35 |
25.4 |
|
ALB-573825 |
57 |
38 |
25.4 |
|
ALB-573528 |
57 |
35 |
28.4 |
|
ALB-573828 |
57 |
38 |
28.4 |
|
ALB-574228 |
57 |
42 |
28.4 |
|
ALB-574428 |
57 |
44.5 |
28.4 |
|
ALB-574534 |
57 |
45 |
34 |
|
ALB-574532 |
57 |
45 |
32 |
|
ALB-574530 |
57 |
45 |
30 |
|
ALB-583825 |
58 |
38 |
25 |
|
ALB-605125 |
60 |
51 |
25.4 |
|
ALB-604534 |
60 |
45 |
34 |
|
ALB-604832 |
60 |
48.5 |
32 |
|
ALB-604430 |
60 |
44.5 |
30.2 |
|
ALB-624532 |
62 |
45 |
32 |
|
ALB-625132 |
62 |
51 |
32 |
|
ALB-624428 |
62 |
44.5 |
28.4 |
|
ALB-624537 |
62.5 |
45 |
37 |
|
ALB-634528 |
63.5 |
45 |
28.6 |
|
ALB-634537 |
63.5 |
45 |
37 |
|
ALB-634528 |
63.5 |
45 |
28.6 |
|
ALB-644522 |
64 |
45 |
22 |
|
ALB-644528 |
64 |
45 |
28.4 |
01502 |
ALB-644537 |
64 |
45 |
37 |
18872 |
ALB-644536 |
64 |
45 |
36 |
|
ALB-644538 |
64 |
45 |
38.2 |
01503 |
ALB-645528 |
64 |
55 |
28.6 |
|
ALB-645432 |
64 |
54 |
32 |
|
ALB-643528 |
64 |
35 |
28.4 |
|
ALB-645525 |
64 |
55 |
25.4 |
|
ALB-644534 |
64 |
45 |
34.4 |
|
ALB-644530 |
64 |
45 |
30.4 |
|
ALB-644532 |
64 |
45 |
32.4 |
|
ALB-644535 |
64 |
45 |
35.4 |
|
ALB-644540 |
64 |
45 |
40.4 |
|
ALB-644542 |
64 |
45 |
42.4 |
|
ALB-645428 |
64 |
54 |
28.4 |
|
ALB-644534 |
64 |
45 |
34 |
|
ALB-644038 |
64 |
40 |
38 |
|
ALB-644638 |
64 |
46 |
38 |
|

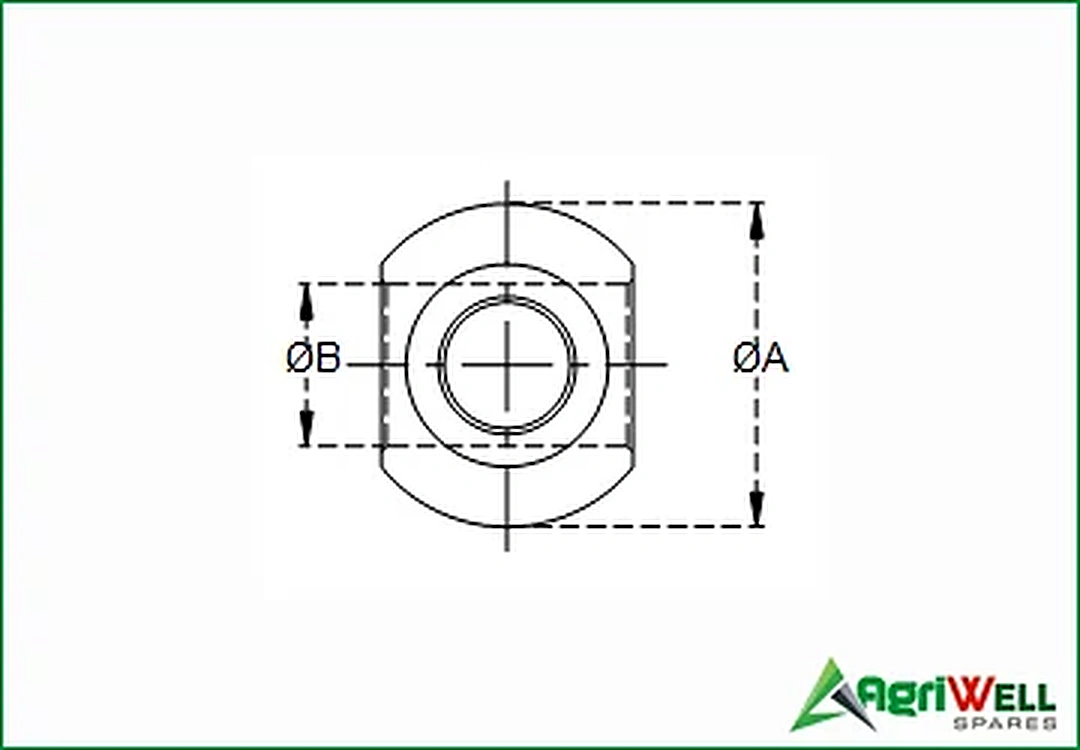

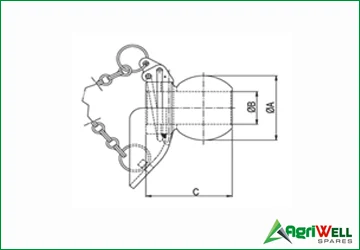

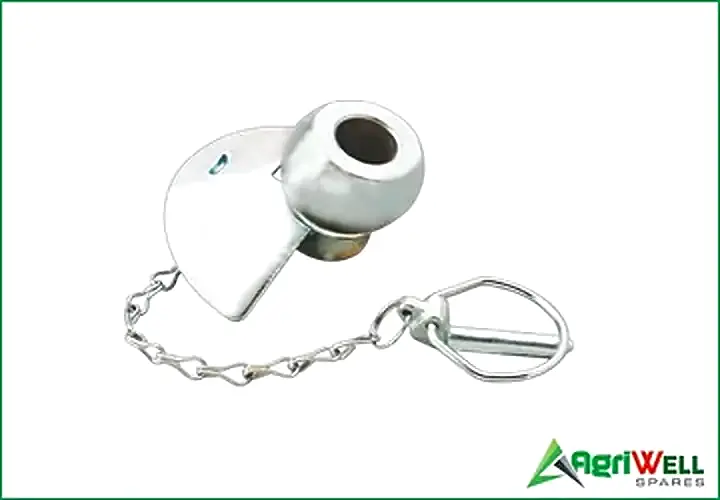

GUIDE CONE BALL HARDENED
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
LINCH PIN SIZE |
Ref. Number |
GCB4422 |
44 |
22.1 |
54 |
11 |
01450 |
GCB5622 |
56 |
22.1 |
66 |
11 |
|
GCB5628 |
56 |
28.4 |
66 |
11 |
01451 |
GCB5637 |
56 |
37.1 |
66 |
11 |
01452 |
GCB6428 |
64 |
28.4 |
66 |
11 |
|
GCB6437 |
64 |
37.1 |
72 |
15 |
|
GCB6437-11 |
64 |
37.1 |
72 |
11 |
|

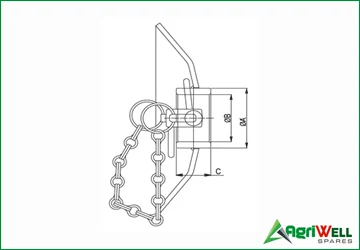

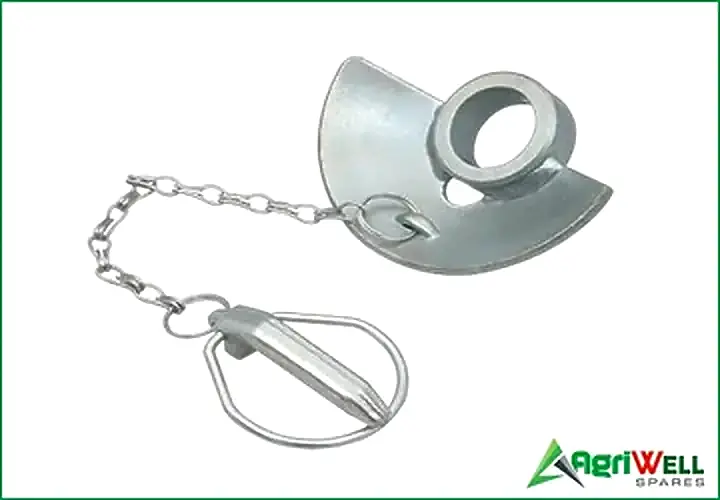

GUIDED CONE BUSH
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Ref. Number |
GCBB-472825 |
45 |
28.4 |
24 |
10107 |
GCBB-473825 |
45 |
37.1 |
24 |
|

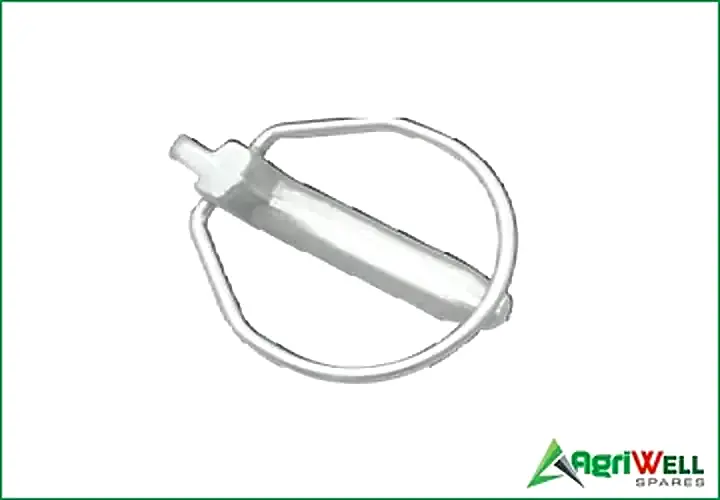

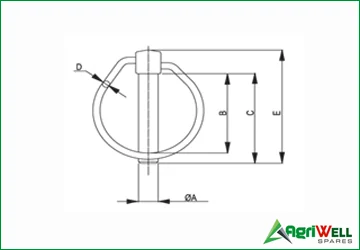

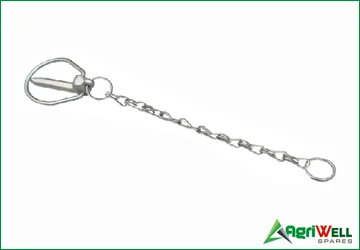

LINCH PINS FORGED
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dia. ØE (mm) |
Ref. Number |
LPF-1148 |
11 |
48 |
52 |
4 |
70 |
00068 |
LPF-1548 |
15 |
56 |
60 |
4 |
82 |
37943 |
